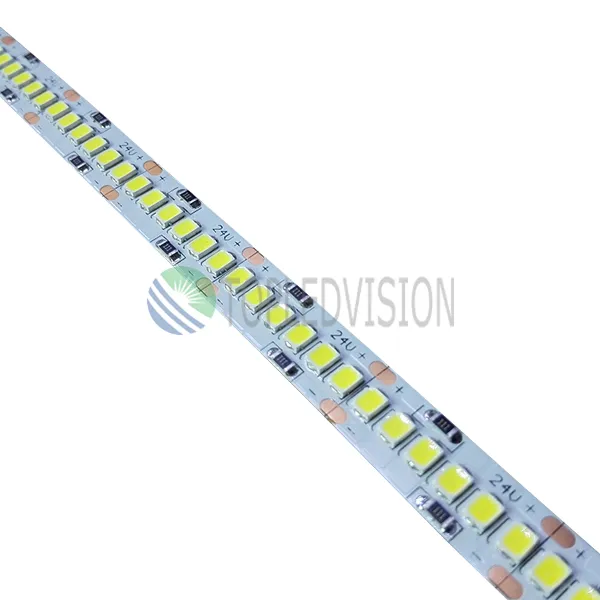

240LEDs/M 22- 24lm /LED New High Bright SMD2835 Flexible LED Strip Light
SMD2835 high quality LED strip is our new product design to replace the 5050SMD LED strip, our testing proved that the 2835 smd LED strip have better reliability, low current, low temperature, higer lumen, and pure color than the same cost 5050 SMD LED strip.The comparison of the same cost led strip......
Send Inquiry
Product Description
SMD2835 high quality LED strip is our new product design to replace the 5050SMD LED strip, our testing proved that the 2835 smd LED strip have better reliability, low current, low temperature, higer lumen, and pure color than the same cost 5050 SMD LED strip.
240LEDs/M 22-24lm/LED New High Bright SMD2835 Flexible LED Strip Light
Features as follow:
1. LED light source:22-24lm LEDs/m for high brightness and low decline ( less than 3% );
2. Low power consumption, high intensity, and reliability;
3. Working current: 90-95% to keep the lumen efficiency safely;
4. Modular design: every 3leds or 6leds as a module and work independently;
5. Input Voltages: 12VDC/ 24VDC can support longer led strip connection;
6. FPC: 8mm/ 10mm width and smaller components, strip be more flexible,white/yellow/black color FPC option;
7. Length: 5mts/ Reel or 10mts/Reel ( support customized the size you want )
8. Easy installation: with 3M adhesive tape on the back and maintenance free;
9. Lifespan:>30000hours with 2 years warranty.
10. IP rating: have different IP level be able to install in any indoor/outdoor environments.
11. Support dimming: with controller and dimmer support by manual or remote;
12. ≤ 15º C temperature rise;
13.100% aging line test before packing minimizes the possibility of defective products flowing out of the factory.
14. Quality inspection in random before shipping assures products reliability with technical data.
Hight Btight SMD2835 240leds LED Strip Sepecification:
LED Strip Installation Guide:
Application:
1.bar, hotel, store, coffee shop, stage, office
2.KTV, Restaurant, house derecation
3.Resident, institution building
4.shopping center, bank
5.Commercial building, exhibition
6.Hospitals, museum
Technical Parameter of Flexible LED Strip:
Our Service:
1. Your inquiries related to our products will be replied in 24 working hours;
2. Providing samples offered in certain quantity and delivered in 3-7 days;
3. OEM and ODM service are provided, we can design and produce according to your needs;
4. Exchange for defective products in warranty time;
5. Arrange shipping and custom declaration.
6. Relevant products sourcing and management service.
FAQ:
Q1: What's your delivery time?
Sample can be finished within 7 days, and bulk order is about 10-15days according to quantity.
Q2: What's your payment?
Sample order:100% T/T in advance.
Bulk order:50% in advance, rest before shipping.
Q3:What's your warranty?
Mostly, our products is 2 years warranty with CE/ RoHS, we can offer 3 years warranty, but the price will be a little bit higher.
Q4:What is your minimum order quantity?
Usually MOQ is 500pcs, but we also accept small order for trail.
Q5: What's is your shipment?
We choose it on your favor. We will research the most economical and reliable shipping company to transport the goods.
Q6: Can I visit your factory?
Yes, we give you a warm welcome to visit our factory. Our factory's address:2F, Block A, Chuangfu industrial pack, Shiyan, Baoan region, Shenzhen of China. If you are willing to come, just call me!
Look forward to your call, Tel:+86 0755-2735 5806 to 804
| The comparison of the same cost led strip | ||
| Item | SMD2835 LED Strip | SMD5050 LED Strip |
| LED | 22-24lm | 16-18lm |
| LED Quantity | 60LEDs/m | 60LEDs/m |
| Lumen flux | 1200-1400lm/m | 800-960lm/m |
| Working voltage | 24V DC/ 12V DC | 24V DC/ 12V DC |
| Working Consumption | 12Watt/m | 14.4Watt/m |
| Size | 5000x10x1.3 | 5000x10x1.3 |
| Working lifespan | >50000hours | >50000hours |
| Forwark voltage drop | 1.7V(5mts) | 2V(mts) |
| Weight | 0.12kg | 0.21kg |
| Quality reliability | Good | Normal |
| Flexibility | Good | Normal |
| Photobiological safety | IEC/EN62471 | Unknown |

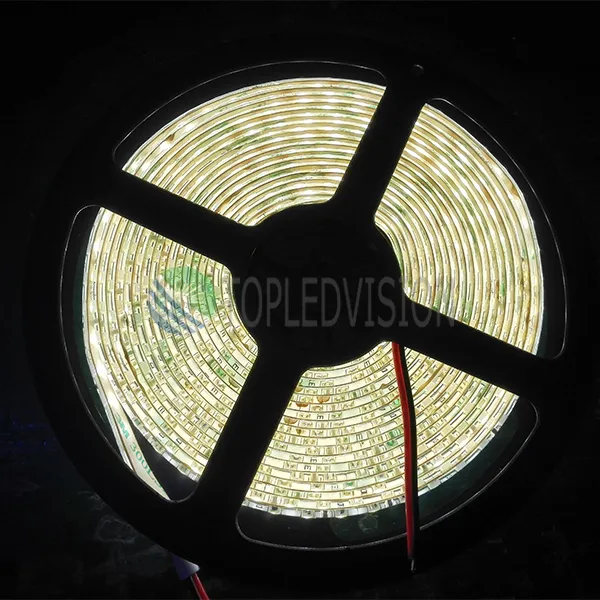

240LEDs/M 22-24lm/LED New High Bright SMD2835 Flexible LED Strip Light
Features as follow:
1. LED light source:22-24lm LEDs/m for high brightness and low decline ( less than 3% );
2. Low power consumption, high intensity, and reliability;
3. Working current: 90-95% to keep the lumen efficiency safely;
4. Modular design: every 3leds or 6leds as a module and work independently;
5. Input Voltages: 12VDC/ 24VDC can support longer led strip connection;
6. FPC: 8mm/ 10mm width and smaller components, strip be more flexible,white/yellow/black color FPC option;
7. Length: 5mts/ Reel or 10mts/Reel ( support customized the size you want )
8. Easy installation: with 3M adhesive tape on the back and maintenance free;
9. Lifespan:>30000hours with 2 years warranty.
10. IP rating: have different IP level be able to install in any indoor/outdoor environments.
11. Support dimming: with controller and dimmer support by manual or remote;
12. ≤ 15º C temperature rise;
13.100% aging line test before packing minimizes the possibility of defective products flowing out of the factory.
14. Quality inspection in random before shipping assures products reliability with technical data.
Hight Btight SMD2835 240leds LED Strip Sepecification:
| LED Type | SMD2835 |
| LED Quantity | 240LEDs/m |
| LED Lumen | 22-24lmLEDs/m |
| Power Consumption | 23Watt/m |
| Color | warm white3000k,nature white4000k,cool white6000k, red,green,blue,yellow,orange |
| Working Voltage | 12V,24V DC |
| Size(L*W*H) | 5000X8(10)X1.3mm |
| Protect Grade | IP20,IP65,IP68 |
| CRI | 70-85Ra (90Ra) |
| Working Lifespan | >50000Hours |
| Package | 5Mts/Reel,10Mts/Reel,Anti-Static Bag |
| Warranty | 2years |
| Certificate | CE, RoHS, IEC/EN62471, LM-80 |

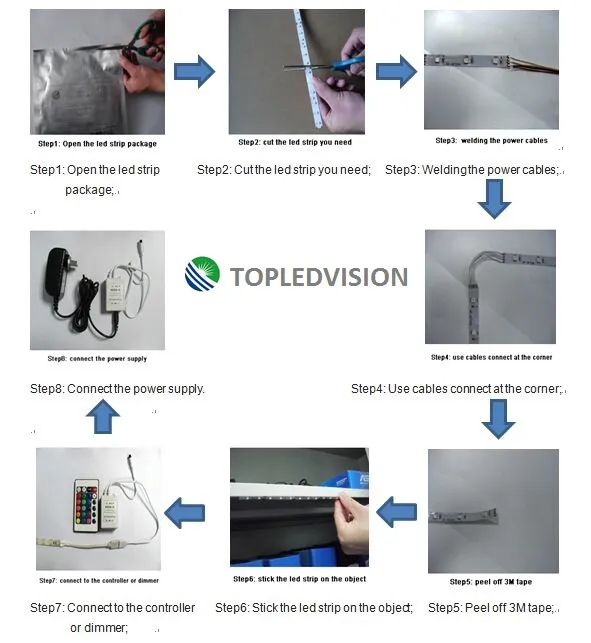

LED Strip Installation Guide:

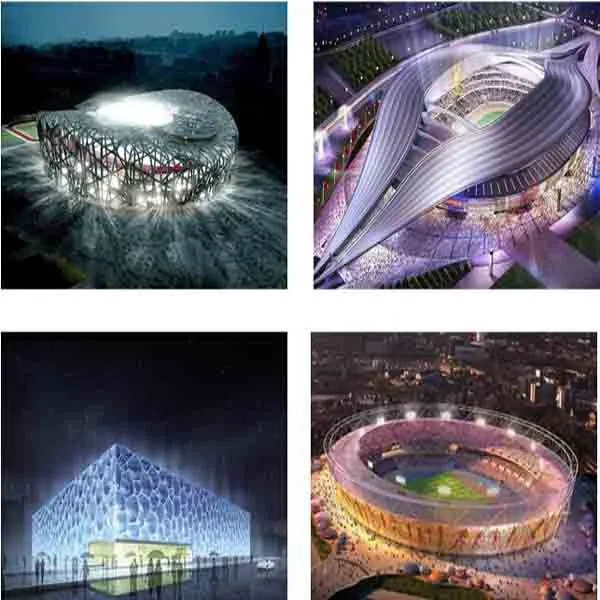

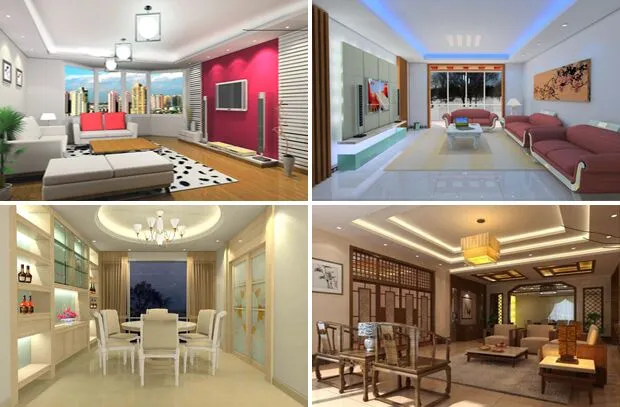

Application:
1.bar, hotel, store, coffee shop, stage, office
2.KTV, Restaurant, house derecation
3.Resident, institution building
4.shopping center, bank
5.Commercial building, exhibition
6.Hospitals, museum
Technical Parameter of Flexible LED Strip:
| Item | SMD2835 LED Strip | SMD3528 LED Strip | SMD5630/5730 LED Strip | SMD3014 LED Strip | SMD5050 LED Strip | SMD5050 RGB LED Strip | SMD5050 RGBW LED Strip | SMD5050 Digital LED Strip |
| LED Quantity | 30, 60, 120, 240 LEDs/m | 60, 120LEDs/m | 30, 60LEDs/m | 60, 120LEDs/m | 30, 60LEDs/m | 30, 60LEDs/m | 60LEDs/m | 60LEDs/m |
| Power | 6, 12, 17, 23Watt/m | 4.8, 9.6Watt/m | 7.5, 15Watt/m | 7.2, 14.4Watt/m | 7.2, 14.4Watt/m | 7.2, 14.4Watt/m | 19Watt/m | 15Watt/m |
| Lumen Flux | 22-24lm,24-26lm, 26-28lm | 7-8lm | 50-55lm,55-60lm | 10-12lm, 12-14lm | 18-20lm, 20-22lm | 1500-1900Mcd | 3000-3500Mcd | 1500-1900Mcd |
| Size(L*W*H) | 5000X8(10)X1.3mm | 5000X8(10)X1.8mm | 5000X8(10)X1.5mm | 5000X8(10)X1.5mm | 5000X10X1.8mm | 5000X10X1.8mm | 5000X12X1.8mm | 5000X12X1.8mm |
| Color Temp | 3000k, 4000k, 6000k | SMD5050RGB With IC | ||||||
| Color | Warm White, Nature White, Cool White, Red, Green, Blue, Yellow, Orange | GRB | RGB+Warm White | RGB | ||||
| Working Voltage | 12V,24V DC | |||||||
| Protect Grade | IP20,IP65,IP68 | |||||||
| Working Lifespan | >30000Hours | |||||||
| Package | 5(10)Mts/Reel,Anti-Static Bag | |||||||
| Packing Qty | 100Reel/Carton | |||||||
| Warranty | 2years | |||||||
| Certificate | CE, RoHS, IEC/EN62471, LM-80 | |||||||
Our Service:
1. Your inquiries related to our products will be replied in 24 working hours;
2. Providing samples offered in certain quantity and delivered in 3-7 days;
3. OEM and ODM service are provided, we can design and produce according to your needs;
4. Exchange for defective products in warranty time;
5. Arrange shipping and custom declaration.
6. Relevant products sourcing and management service.
FAQ:
Q1: What's your delivery time?
Sample can be finished within 7 days, and bulk order is about 10-15days according to quantity.
Q2: What's your payment?
Sample order:100% T/T in advance.
Bulk order:50% in advance, rest before shipping.
Q3:What's your warranty?
Mostly, our products is 2 years warranty with CE/ RoHS, we can offer 3 years warranty, but the price will be a little bit higher.
Q4:What is your minimum order quantity?
Usually MOQ is 500pcs, but we also accept small order for trail.
Q5: What's is your shipment?
We choose it on your favor. We will research the most economical and reliable shipping company to transport the goods.
Q6: Can I visit your factory?
Yes, we give you a warm welcome to visit our factory. Our factory's address:2F, Block A, Chuangfu industrial pack, Shiyan, Baoan region, Shenzhen of China. If you are willing to come, just call me!
Look forward to your call, Tel:+86 0755-2735 5806 to 804
