3 Years Warranty 5050 Warmwhite Flexible LED Strip for Indoor Decoration light
SMD5050-HL Warmwhite Flexible LED Strip Light for Indoor Using decoration lightSMD5050 Warmwhite Constant Current LED STRIP SHOW:LED strip light features:1. Led strip light is elegant design,excellent quality,fine craftsmanship and good high-stimulative effect.2.Low energy consumption and can be ad......
Send Inquiry
Product Description
SMD5050 Warmwhite Constant Current LED STRIP SHOW:
LED strip light features:
1. Led strip light is elegant design,excellent quality,fine craftsmanship and good high-stimulative effect.
2.Low energy consumption and can be adjusted according to needs voltage output,safe for touching
3.Waterproof,heatproof,cold resistant,anti-wind,anti-aging
4.Can be used for decorations and outline design .
5.Customized color and size are available
6.Simple installation,easy to maintain
7.Color changing led strip light meet 2 years warranty
LED strip light specification:
Model NO | LM5050-WN30-HL-12V-10MM |
Product Name | SMD5050 30LEDS/M Constant Current LED strips |
PCB Width | 10MM |
LED Qty/m | 30leds/m 5050 |
PCB Materials | 2Oz Double-sided coated pure copper(can print your logo on PCB) |
Voltage(V) | 12V DC |
Rated Power(W) | 6.6W/M,33W/5M |
Luminous(lm/m) | 840lm/m |
LED Chip Brand | Sanan(Epistar optional) |
LEDs material | packaged by 99.99% pure gold wire |
LED BINs | 3-Step/5-Step, same BIN for each order |
LEDs Supplier | Honglitronic (Osram/Samsung optional) |
CRI(RA>) | CRI80(CRI 90 optional) |
Color | W/WW/CW/R/G/B/Y/O/UV/Pink |
Color Tempertature | 2200K,2700K,3000K,3500K,4000K,6000K,7000K |
IP Rate | IP20 (IP54/IP67/IP68 optional) |
View Angle | 120 |
Product Size(mm) | 10*5000mm |
Package(m/rol) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
Working Temperature(ºC) | -20-60 |
Cutting Unit | 3 LEDs |
Adhesive Tape | 9495 3000LSE 3M tape |
Dimmable | Yes |
Certificate | UL,CE,Rohs,FCC. |
Warranty | 3 Years |

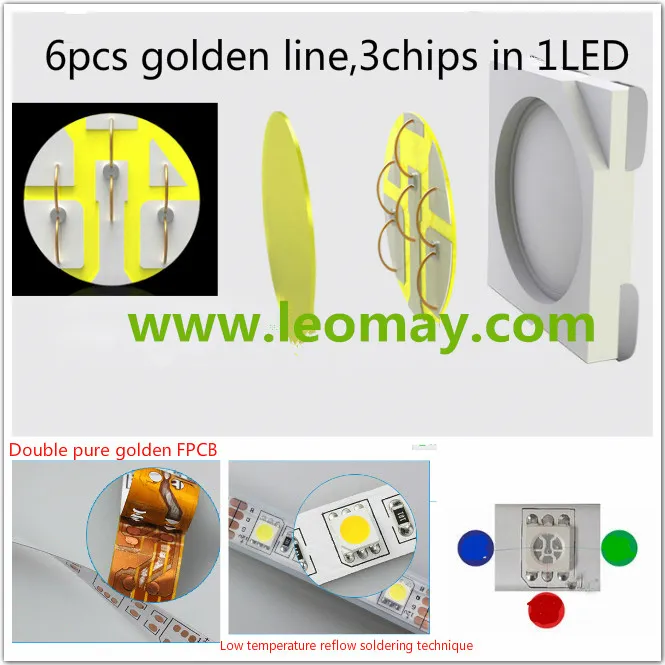

Details of 5050:
LED strip light application:
• Buildings
• Bridges
• Homes
• Display cabinets
• Hotel decoration
• City brightening
• Outdoor advertising
• Places of entertainment
• Pavilions Crochet lighting
• Interior dark groove decoration
LED strip 5050 series:
| Model | LED QTY | Volt | Power | Lumen/m | CRI | PCB Width | IP Rate | Color |
| LM5050-WN30 | 30leds/m | 12v/24v | 7.2w/m | 600lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 | R/Y/W/G/B/WW |
| LM5050-WN48 | 48leds/m | 12v/24v | 11.5w/m | 960lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 | R/Y/W/G/B/WW |
| LM5050-WN60 | 60leds/m | 12v/24v | 14.4w/m | 1200lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 | R/Y/W/G/B/WW |
| LM5050-WN120 | 120leds/m | 12v/24v | 28.8w/m | 2400lm/m | 80 | 18mm | IP20/IP65/IP67/IP68 | R/Y/W/G/B/WW |
| LM5050-WN30-RGB | 30leds/m | 12v/24v | 7.2w/m | 10mm | IP20/IP65/IP67/IP68 | RGB | ||
| LM5050-WN60-RGB | 60leds/m | 12v/24v | 14.4w/m | 10mm | IP20/IP65/IP67/IP68 | RGB | ||
| LM5050-WN60-RGBW | 60leds/m | 12v/24v | 14.4w/m | 12mm | IP20/IP65/IP67/IP68 | RGBW |
A: Yes, we are LED lights manufacturer in Zhongshan, China.
Q: Can I have samples to test?
A: Yes, sample test is available and welcome.
Q: Can our logo or a simple parameter printed on the label of the led flexible strip?
A: Sure, if you like, we can print for you. Just telling us your requirements.
Q: Can you make the lamps using other brand led chip, e.g. CREE, OSRAM?
A: Yes, it is ok for other brand chips, we can produce the products according to your demands.
Q: What is Delivery Time?
A: 5~7 days for normal orders; fast shipping for exact delivery time needs to discuss according to your order list; We keep our regular products in stock, you can consult with us about the shipping date.
Q: How about the warranty?
A: 2 years.
Q: Do you attend the Exhibitions?
A: Yes, we attend Canton Fair; HK Lighting Exhibition, International Exhibitions etc.
Q: What is the package?
A: Anti-static Package, 5M/roll. Also you can offer your own designs, you can also come to us for exact pictures for packing.
Certifications:
