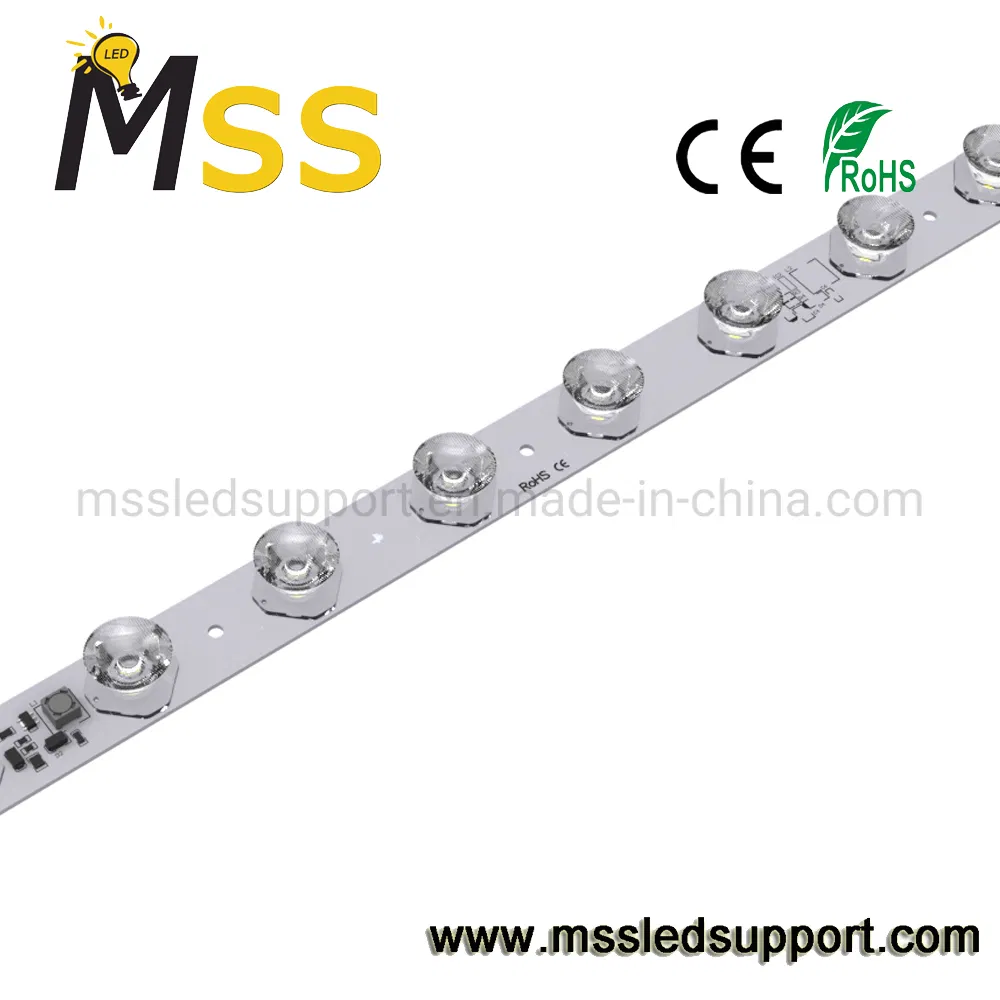

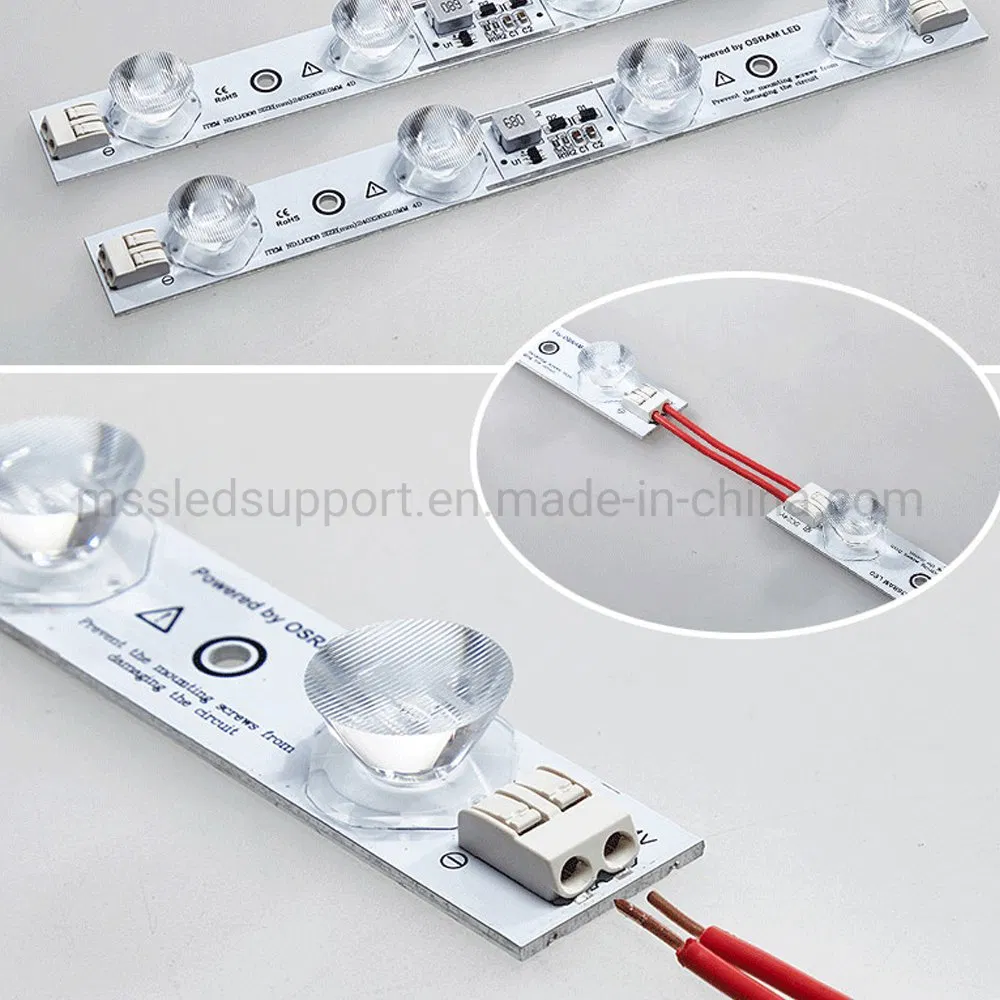

3535 SMD 3W LED High Power Narrow Beam LED Edge Module for Light Box
3535 SMD 3W LED High Power Narrow Beam LED Edge Module for light boxFeatures1. Constant Current Technology (CCT),2. The Aluminum plate for heat dissipation3. Energy saving,Environment friendly4. Long life spanDimensionsRemark:The pitch of the light-bar is variable.Environmental and Application Condi......
Send Inquiry
Product Description
3535 SMD 3W LED High Power Narrow Beam LED Edge Module for light box
Features
1. Constant Current Technology (CCT),
2. The Aluminum plate for heat dissipation
3. Energy saving,Environment friendly
4. Long life span

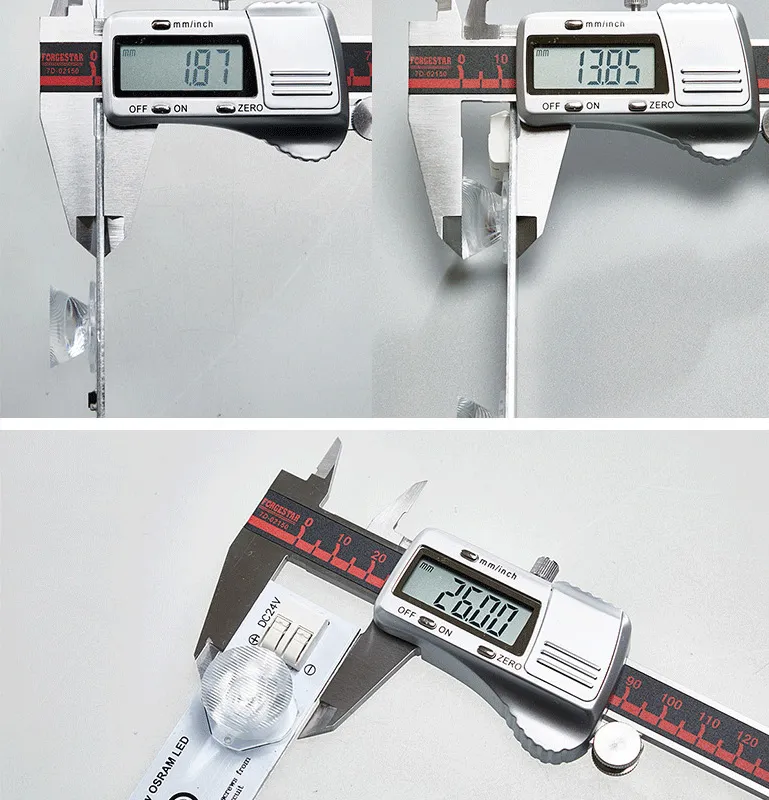

Dimensions
Remark:The pitch of the light-bar is variable.
Environmental and Application Conditions
Electrical parameters
Optical parameters (module base)
LED module light distribution graph
Applications
Package
1. Outal carton:65x31x30cm, Inside the carton:707x295mm, PE film:250x125mm.
2. 12pcs per chain,4pcs chain in one Inside the carton . (48 pcs in one layer).
3. 10 layers in one outal carton . ( 480 pcs in one outal carton).
Features
1. Constant Current Technology (CCT),
2. The Aluminum plate for heat dissipation
3. Energy saving,Environment friendly
4. Long life span

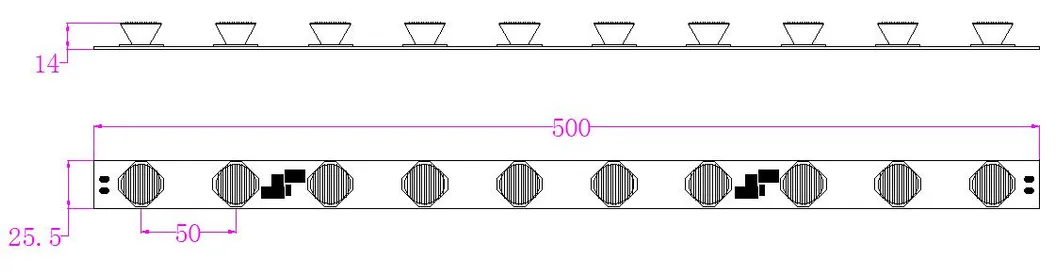

Dimensions
Remark:The pitch of the light-bar is variable.
Environmental and Application Conditions
| Ambient temperature range (TA on free air) | -25…..+55ºC |
| Operating (case) temperature range (TC) | -25…..+55ºC |
| Storage temperature range | -25…..+65ºC |
| IP rating | IP33 |
Electrical parameters
| Supply voltage range | 24±0.5 VDC |
| Supply Current range (per module) | 0.875A |
| Power range (per module) | 21W Max |
| ESD protection | Contact 4KV, Air 8KV |
Optical parameters (module base)
| Part No. | Color Range | Flux Range | Beam angle | |||
| Min. CCT or wavelength | Typ. CCT or wavelength | Max. CCT or wavelength | Min. Lumen | Max. Lumen | ||
| SLB10XCR-2100B500 | 6000 K | 7000 K | 8000 K | 1900 lm | 2100 lm | 10*40° |

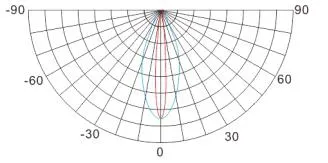

LED module light distribution graph

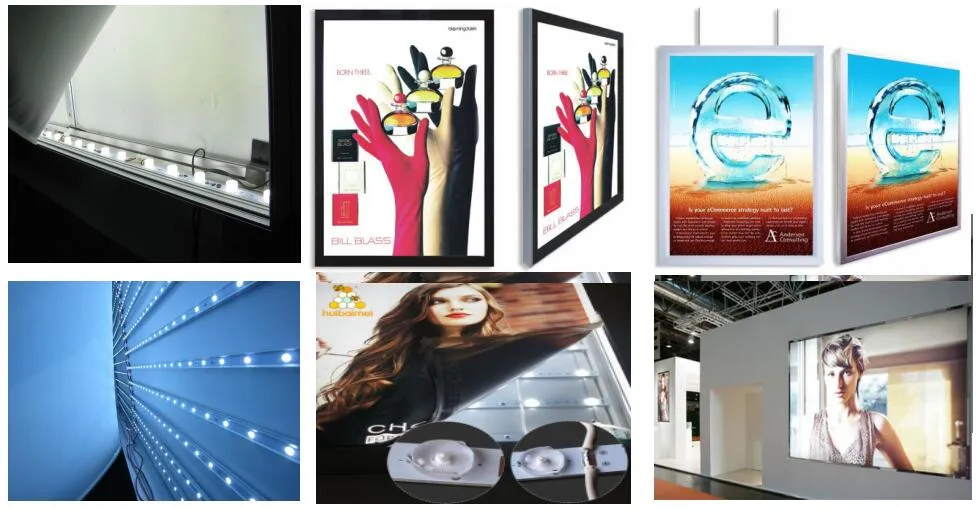

Applications
1. Commercial standing lighting
2. Light box lighting
3. Logo lighting
4. Line/shape lightingPackage
1. Outal carton:65x31x30cm, Inside the carton:707x295mm, PE film:250x125mm.
2. 12pcs per chain,4pcs chain in one Inside the carton . (48 pcs in one layer).
3. 10 layers in one outal carton . ( 480 pcs in one outal carton).
