48V CRI80 84PCS /M Single End Power Supply for 50m Long Cascade LED Light Strip
Features: 1,Single end power supply for 50m, no brightness difference from head to tail.2,High quality IC, constant current for single LED.3,3oz FPC makes great capacity for high current.4,Lower lumen drop LED with longer lifetime.5,Single BIN shipment, good lighting consistency.6,Certification: UL,......
Send Inquiry
Product Description
Features:
1,Single end power supply for 50m, no brightness difference from head to tail.
2,High quality IC, constant current for single LED.
3,3oz FPC makes great capacity for high current.
4,Lower lumen drop LED with longer lifetime.
5,Single BIN shipment, good lighting consistency.
6,Certification: UL, CE, RoHS, FCC,TUV etc.
Applications:
super market, hotel lobby, dark groove decoration, building/bridge outline lighting
Product specifications:
Optical parameters:
Optional accessories:
Packaging information:
Declaration:
Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.;
Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
Do not fold it in case any damage of LED beads.
Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.;
Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 °C ~ + 40 °C.Storage temperature: -25 °C ~ + 60 °C/60%RH.
Please use the strips without waterproof within indoor environment with humidity less than 70%.
Please be careful during operation. Do not touch the AC power supply in case of electric shock.
Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product.
Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
1,Single end power supply for 50m, no brightness difference from head to tail.
2,High quality IC, constant current for single LED.
3,3oz FPC makes great capacity for high current.
4,Lower lumen drop LED with longer lifetime.
5,Single BIN shipment, good lighting consistency.
6,Certification: UL, CE, RoHS, FCC,TUV etc.
Applications:
super market, hotel lobby, dark groove decoration, building/bridge outline lighting
Product specifications:
| Product Size | 50000*10*1.5mm |
| Cutting Unit | 166.7mm |
| Chips Pitch | 11.9mm |
| Chips Quantity | 84Pcs/m |
| Max. Cascade Length | 50m |
| Min. Bend Diameter | 20mm |
| Mounting | 3M |
| Operating Ambient | -25°C~45°C |
| Storage Environment | -25°C~60°C |
Optical parameters:
| Model NO. | Input Voltage (DC V) | Rated Current (mA/m) | Typical Power (W/m) | Color Rendering Index | Color Temperature | Lumen (Lm/M) | Luminous efficiency (Lm/W) |
| RL084GW12M | 48 | 100 | 4.8 | >80 | 2700K | 620 | 124 |
| 3000K | 635 | 127 | |||||
| 4000K | 690 | 138 | |||||
| 5000K | 690 | 138 | |||||
| 6500K | 665 | 130 | |||||
RL084GW12M-1 | 48 | 100 | 4.8 | >80 | 2700K | 450 | 90 |
| 3000K | 460 | 92 | |||||
| 4000K | 500 | 100 | |||||
| 5000K | 500 | 100 | |||||
| 6500K | 480 | 96 |

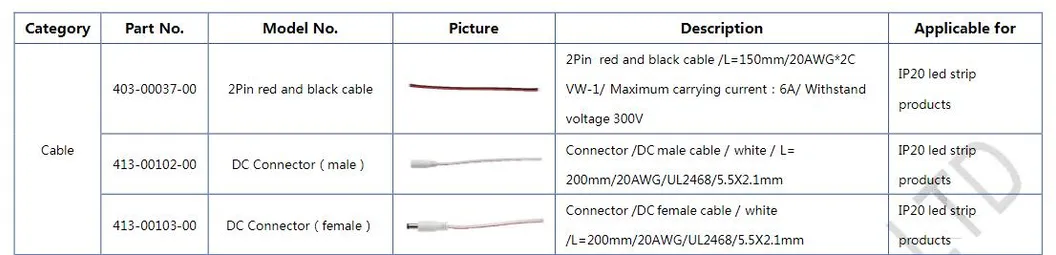

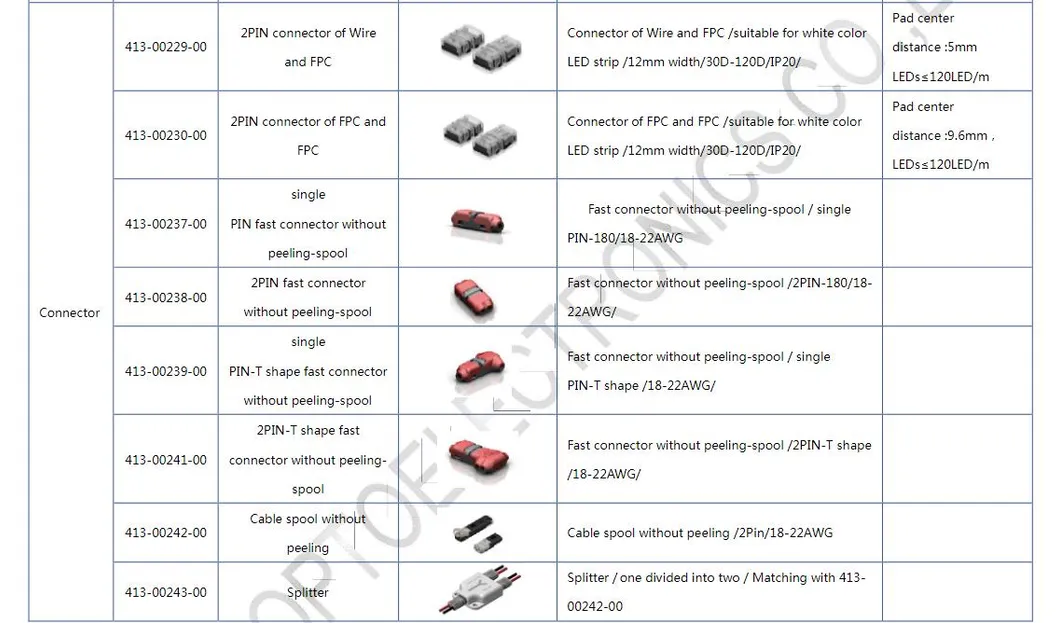

Optional accessories:

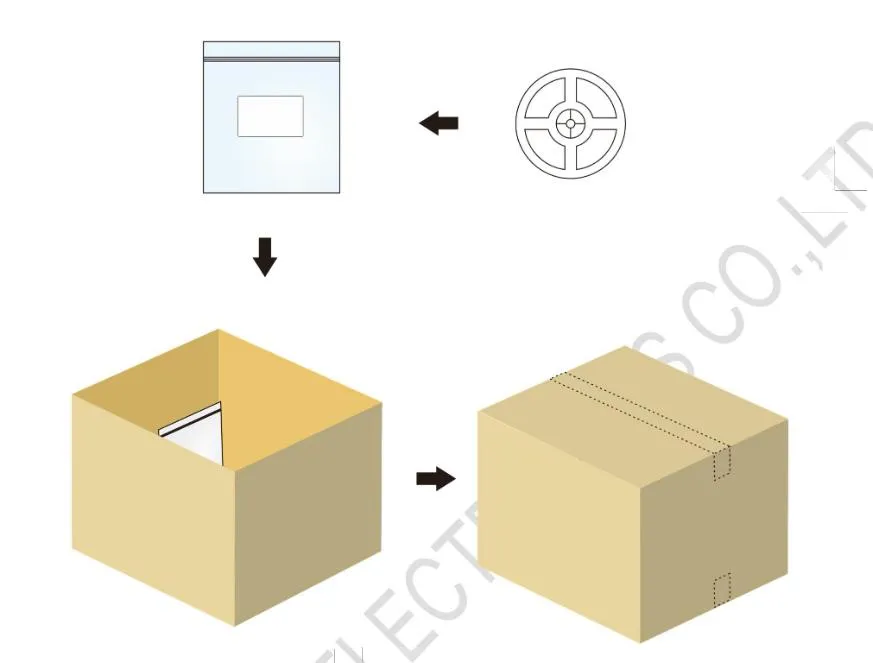

Packaging information:
Declaration: Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.;
Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
Do not fold it in case any damage of LED beads.
Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.;
Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 °C ~ + 40 °C.Storage temperature: -25 °C ~ + 60 °C/60%RH.
Please use the strips without waterproof within indoor environment with humidity less than 70%.
Please be careful during operation. Do not touch the AC power supply in case of electric shock.
Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product.
Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
