Product Description

LED aluminum rigid strip light, LED rigid bar

Normal Brightness: 10*12mil chips, SMD5050 is 12-13 Lm/LED; SMD3528 is 5Lm/LED; High Brightness: 10*16mil chips, SMD5050 is 16-18 Lm/LED; SMD3528 is 7.5Lm/LED. Colour Temperature will again base customer`s requirement, 2000K-10000K are available.

Application:
It is widely used in furniture lighting, showcase lighting to display jewelries, watches, artworks. Also, it's popular used in advertising light box, advertising signboard, car, shop, hotels, exhibitions, wimming pool and so on.

Product Feature
1. Aluminium PCB, available length 1m per PCS, with aluminum tube/ heat sink.
2. Made of SMD 3528 or SMD 5050 LEDs from Taiwan EPIstar, with high brightness and long lifespan (up to 50 000hours)
3. High temperature resistant, aluminum PCB with good heat dissipation
4. Working voltage: DC 12V, DC 24V
5. It is rigid, not flexible
6. Working temperature: -25 to +60 degree Celsius
7. Using environmental friendly material
8. Certification: CE & RoHS

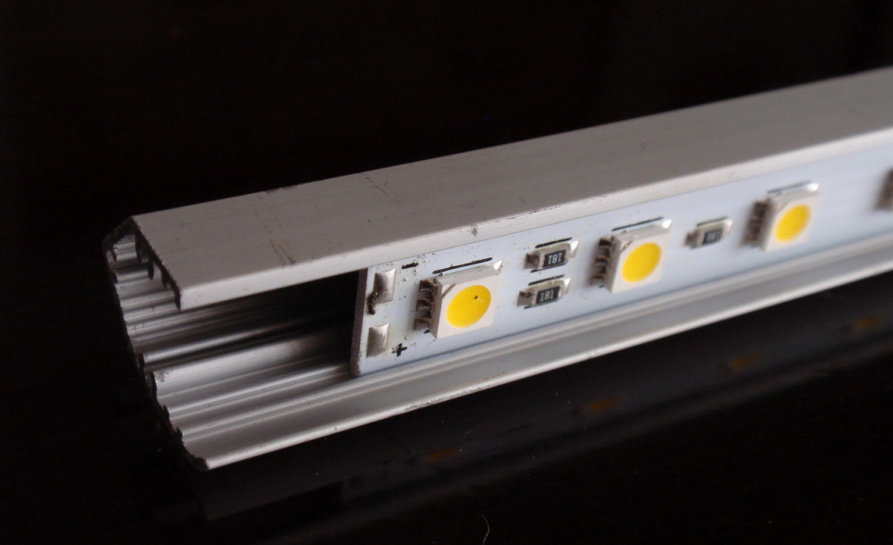

Aluminum Bar Light (regid strip light + aluminum heat sink, Non-waterproof type & Waterproof type, DC12V/ DC24V)
Series No.	Color	Led Quantity (PCS/M)	CCT(k)/Wavelenth (nm)	Size	VF(V)	Power (W/M)	Luminous Flux/M
WD-RS5050W60-ABL	W/WW Y/G/R/B/RGB	60/PC	2000K-10000K	H8mm* W15mm* L1000mm	DC12V/ DC24V	14.4w	Normal Brightness: 720LM
							High Brightness: 960LM
WD-RS5050W72-ABL	W/WW Y/G/R/B/RGB	72/PC	2000K-10000K	H8mm* W15mm* L1000mm	DC12V/ DC24V	19.44w	Normal Brightness: 864LM
							High Brightness: 1152LM
WD-RS3528W60-ABL	W/WW Y/G/R/B/RGB	60/PC	2000K-10000K	H7mm* W12mm* L1000mm	DC12V/ DC24V	4.8W	Normal Brightness: 300LM
							High Brightness: 450LM
WD-RS3528W84-ABL	W/WW Y/G/R/B/RGB	84/PC	2000K-10000K	H7mm* W12mm* L1000mm	DC12V/ DC24V	6.72W	Normal Brightness: 420LM
							High Brightness: 630LM
