Product Description

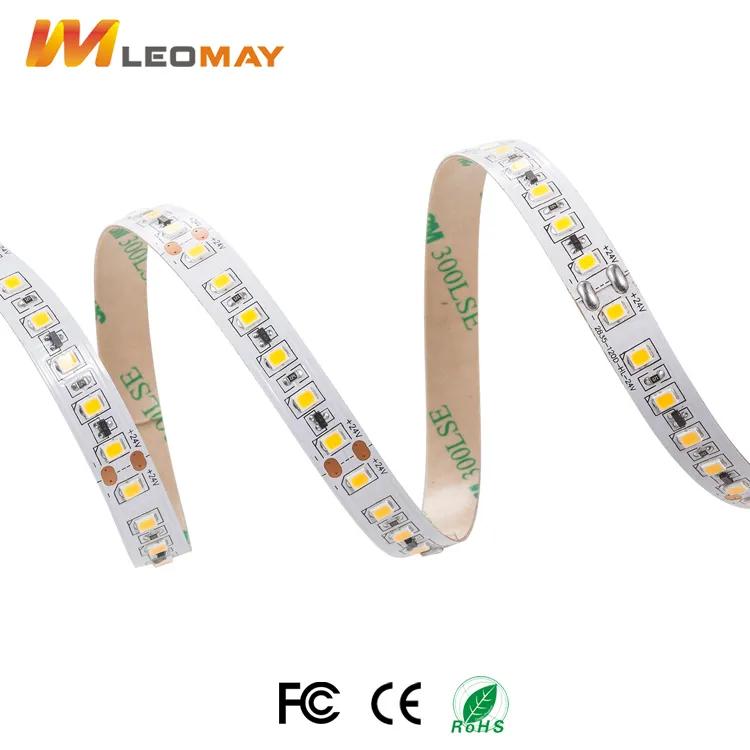

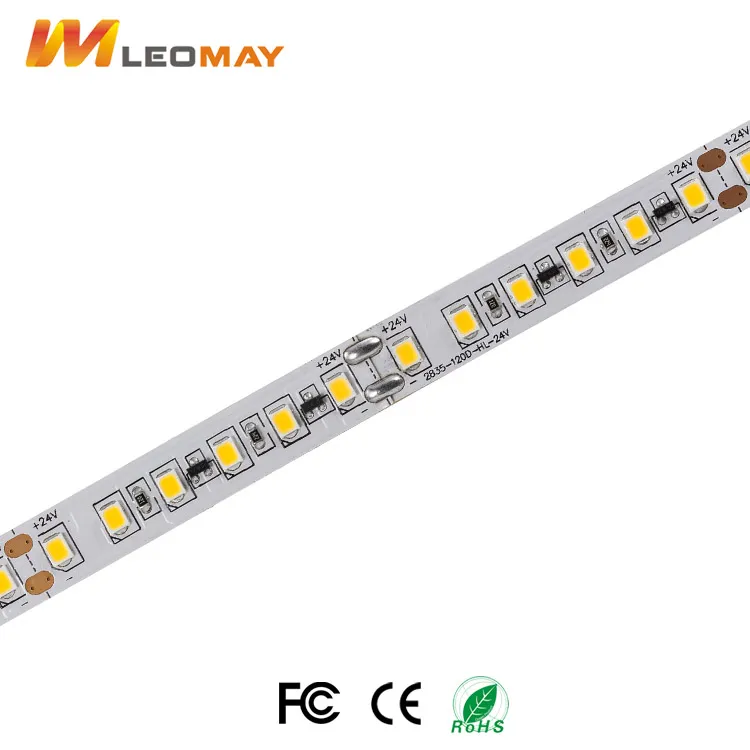

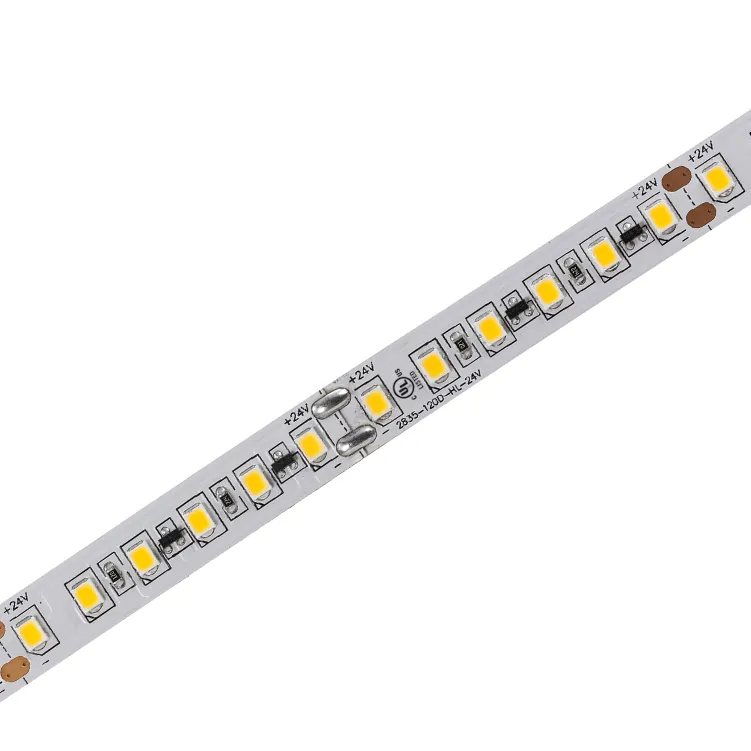

CRI90+ Super brightness SMD2835 DC24V Constant Current LED Strip 3 Year Warranty
Model NO | LM2835-WN120-HL-24V-10MM |
Product Name | SMD2835 120LEDS/M Constant Current LED strips |
PCB Width | 10MM |
LED Qty/m | 120leds/m 2835 |
PCB Materials | 3Oz Double-sided coated pure copper(can print your logo on PCB) |
Voltage(V) | 24V DC |
Rated Power(W) | 21.6W/M, 108W/5M |
Luminous(lm/m) | 3000lm/m |
LED Chip Brand | Sanan(Epistar optional) |
LEDs material | packaged by 99.99% pure gold wire |
LED BINs | 3-Step/5-Step, same BIN for each order |
LEDs Supplier | Honglitronic (Osram/Samsung optional) |
CRI(RA>) | CRI80(CRI 90 optional) |
Color | W/WW/CW/R/G/B/Y/O/UV/Pink |
Color Tempertature | 2200K,2700K,3000K,3500K,4000K,6000K,7000K |
IP Rate | IP20 (IP54/IP67/IP68 optional) |
View Angle | 120 |
Product Size(mm) | 10*5000mm |
Package(m/rol) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
Working Temperature(ºC) | -20-60 |
Cutting Unit | 3 LEDs |
Adhesive Tape | 9495 3000LSE 3M tape |
Dimmable | Yes |
Certificate | UL,CE,Rohs,FCC. |
Warranty | 3 Years |

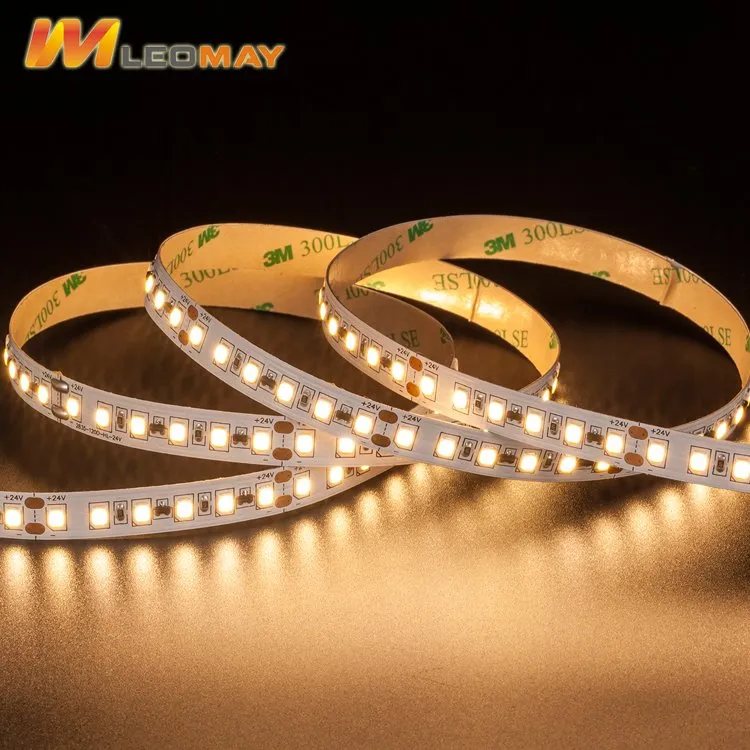

Details Images
Our Services
1. We can help all our customer in instaling, design, and accessory free.
2. Our all customer know: our connector, install cips, wires, is free with orders.
3. Any questions when using , we always fast replys with the professional methods.
4. The shipping from us, very fast, because when we know the normal prodcuts you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.
Packing & Delivery
Packing
- LED Strip Normal Length: 5meters/roll, in a anti-static bag.
- Our Box Size for 80rolls 10MM width Led strip and 12MM width
- 50rolls per box
- Size:46CM*35CM*25CM
- 50Rolls led strip in 1 Box
- weight: 10.5±0.5KG/BOX
Delivery
We mainly ship by DHL, International Express and others acording to customer's requirement.

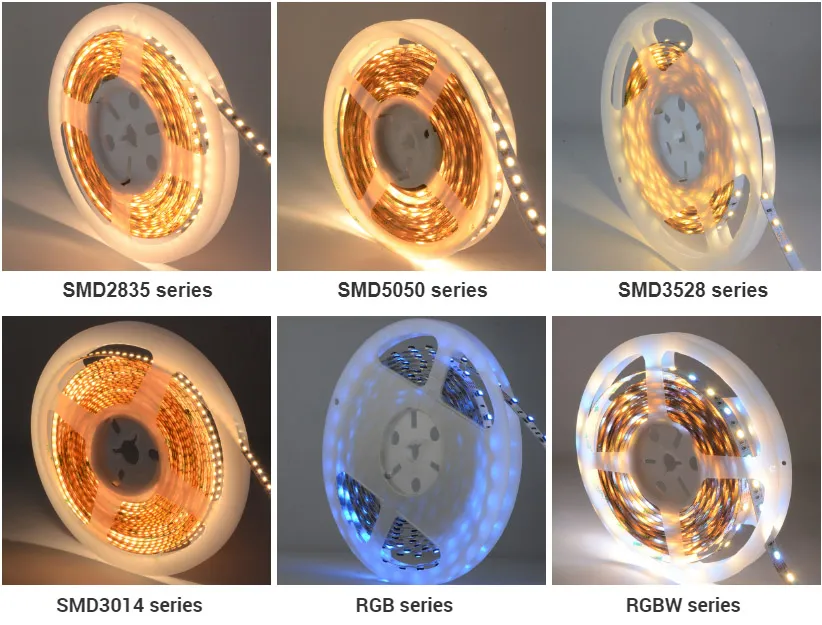

Recommend Products
