DC12V/24V 3528 LED Ribbon 19.2W/M Red Color LED Strip Light
DC12V/24V 3528 LED Ribbon 19.2W/M Red Color LED Strip LightFeatures:-Single color flexible LED strip with self-adhesive backing-Ideal for fast installation into many applications like signs, displays and pelmets-High Density 240 SMD3528 LED per meter in single row for continuous lighting-5 meters pe......
Send Inquiry
Product Description

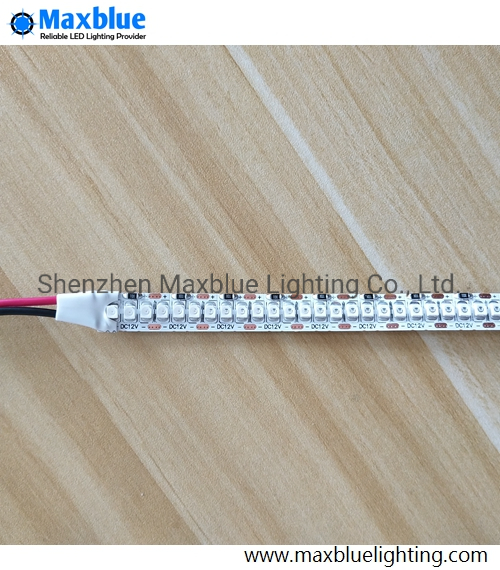

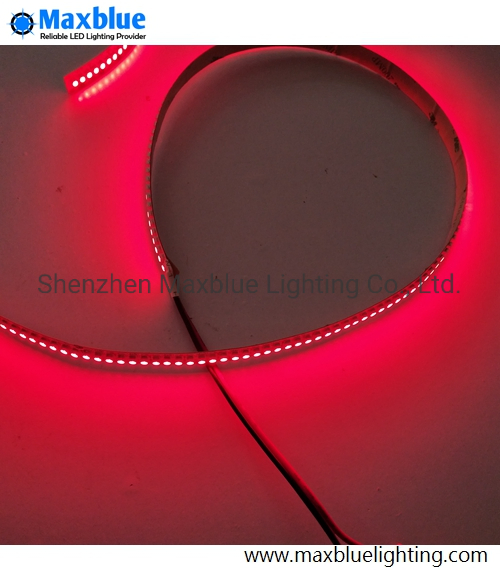

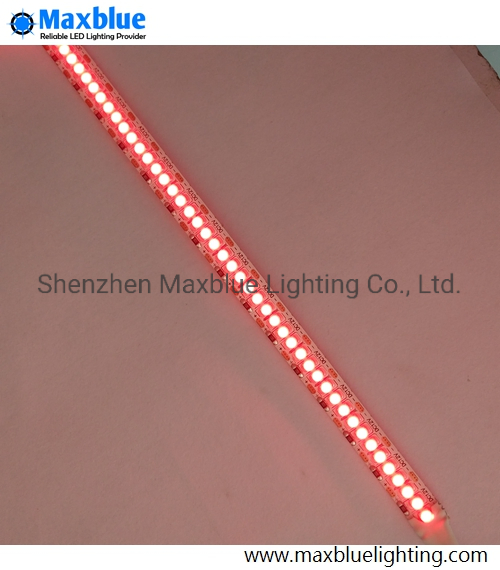

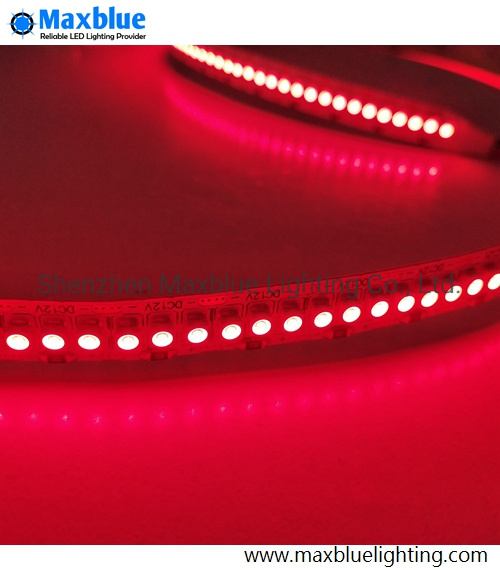

DC12V/24V 3528 LED Ribbon 19.2W/M Red Color LED Strip Light
Features:
-Single color flexible LED strip with self-adhesive backing
-High Density 240 SMD3528 LED per meter in single row for continuous lighting
-5 meters per roll
-Different colors and IP20, IP65 available
-White PCB board
-per 6-led for 24V strip
-Two-year warranty with CE RoHS compliant
Product Specification:
Model No.: MB-FS3-R-240/20

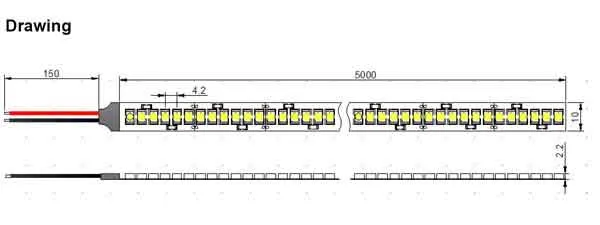

Dimension: 5000mm*10mm*0.22mm
PCB width: 10mm
PCB color: White
Voltage: DC24V/12V
Max.Current: 20mA/LED
Wattage: 15.8-16W per meter
Lumen: 1580lm per meter@4000K
LEDs: 1200pcs SMD3528
Waterproof grade: IP20
Beam Angle: 120degree
Color: Warm white/Cool white/Red/Green/Blue/Yellow
Working temperature: -20~+60 celsius degree
Product Specification:
| TECHNICAL DATA | ||
| Product | Product Name | 3528 1chip 19.2W/M 240leds/M LED Strip Light |
| Model No. | MB-FS3-X-240/20 | |
| Manufactured by | Maxblue Lighting | |
| LED Lifetime | 30000Hrs | |
| Warranty | 3 years | |
| Electrical Spec | Max. Wattage | 19.2W/M, 96W/Reel |
| Working Voltage | DC12V/DC24V | |
| Max. Current/M | 1.6A/0.8A Per Meter | |
| Lighting spec | LED Type | SMD3528 1-CHIP |
| CHIP Brand | EPISTAR/SANAN | |
| Lumen/LED | 7-8lm | |
| LED Q'ty/Meter | 240Leds/M (Single Row) | |
| Color | R, G, B, Y | |
| Color Temperature / CCT | 2700K,3000K, 4000 and 6000K | |
| Color Rendering Index / CRI | >82Ra, >90Ra | |
| Luminous Output / Meter | 1680lm@4000K Ra80 | |
| Light Efficiency | 80-100lm/w | |
| Energy Efficiency Class | A+ | |
| Beam Angle | 120° | |
| Dimmable | PWM | |
| Dimension | Standard Length | 5Meter |
| PCB Width | 10mm | |
| Height | 2.2mm | |
| Cuttable Unit | 12.5mm(12V)/ 25mm(24V) | |
| Others | Install | 3M Adhensive Tape |
| Standard Cable Length | 15cm red/black at one side | |
| Package | 5M Per Anti-static foil bag | |
| IP Rating | IP20. IP65/IP67 available on request | |
| OEM/ODM | Available (different size, wattage, color/cct, cable) | |
| Environment | Operating Temperature | -25°C~45°C |
| Storage Temperature | -30°C~60°C | |
| Environment Humidity | 40-70% RH | |

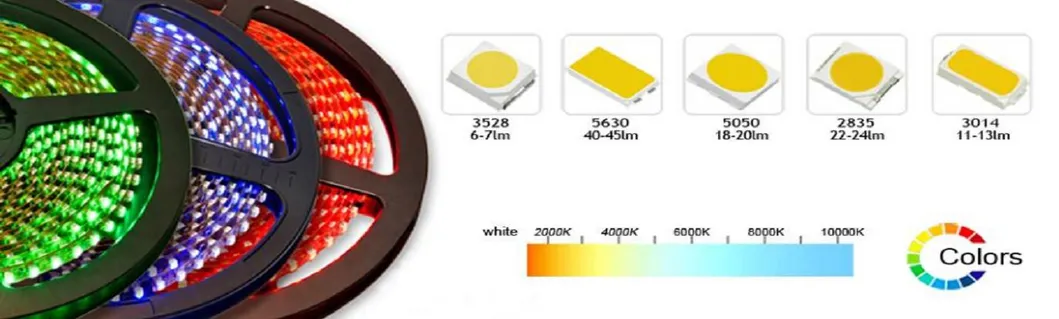

Flexible led Strip range:
--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 96leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row), 140leds/m
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--3014 smd led: 60leds/m, 120leds/m in top view; 60leds/m, 120leds/m in side view of edge lighting 5mm width;
--RGBW led strip: 4 in one(60/72/84/96leds/m)
RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip:
3528 120/240 leds/m; 5050 60leds/m; 2835 112leds/m; 3014 224leds/m; 5630 112leds/m.
--Digital strips
--110V/220V led strips
--Different length, different voltage, different led quantity can be customized/tailored
--COB Led strip
--Neon led strip light

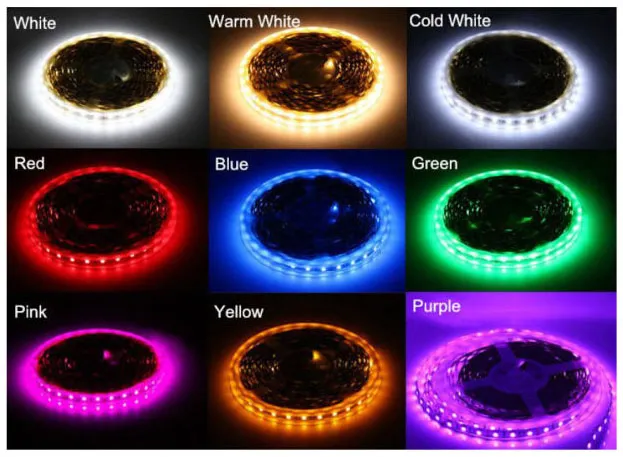

Different colors available.

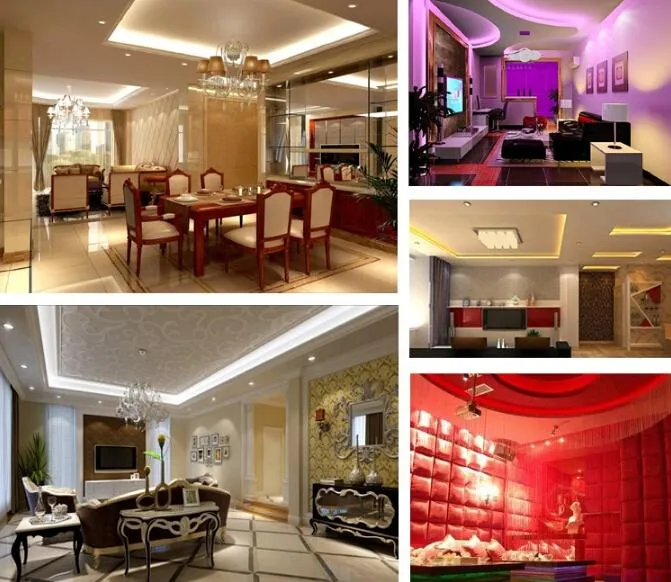

LED Strip Application:
b. Large scale backlight.
c. Window display lighting.
d. Building contour decorative lighting.
e. Advertising Signs, light boxes.
f. Landscape outlines.
g. Car and motorcycle decorative lighting.
h. Bridge edge lighting.
i. Architectural decorative lighting.
j. Emergency hallway lighting.
k. Festival lighting, like Christmas.
FAQ:
Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: maxblue.en.made-in-china.com
Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.
Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.
Q4: What is warranty time for your products? If any broken, what I will do?
3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.
Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.
Q6: What kinds of payment methods do you accept?
T/T bank transfer, West Union and Paypal, L/C at sight
Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
Q8: How to contact us?
Send your inquiry in the below for Price list and more detailed information, hot-selling and discount Now!
