High Density Dotless 240LED/M 300LED /M LED Strip Light 2216
High Density Dotless 240led/m 300led/m LED Strip Light 2216 Features:1. Adopt top SMD2016.High brightness.2,Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam).3,Single Bin led selection to ensure color consistence4. DC12V 24V low voltage, high security.5. Low power co......
Send Inquiry
Product Description
High Density Dotless 240led/m 300led/m LED Strip Light 2216
Features:
1. Adopt top SMD2016.High brightness.
2,Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam).
3,Single Bin led selection to ensure color consistence
4. DC12V 24V low voltage, high security.
5. Low power consumption, long life, free maintenance
6. Cuttable length: every 3 leds cuttable for DC12V type,every 6 leds cuttable for DC24V type
7.3M adhesive tape easily for fixing
8. CE,RoHS Certificated
9. Life span: >50000hours
10.Small size led can achieve more leds per meter

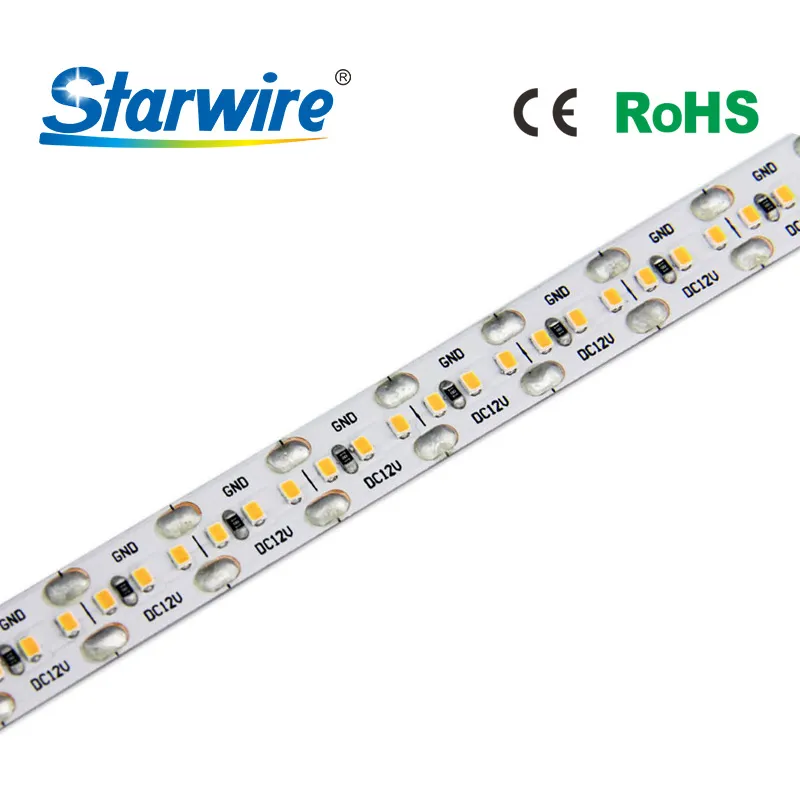

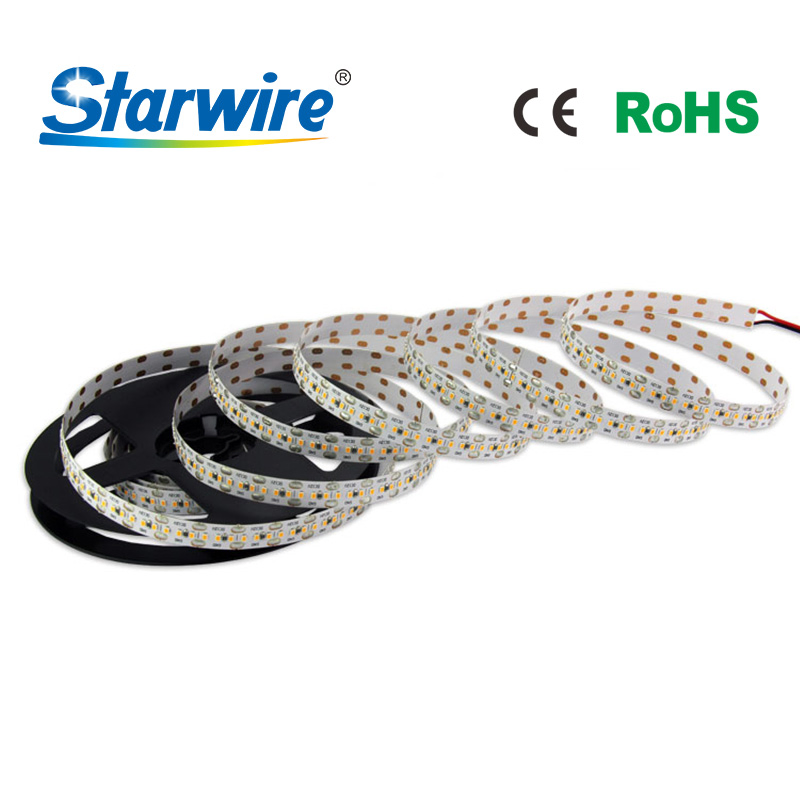

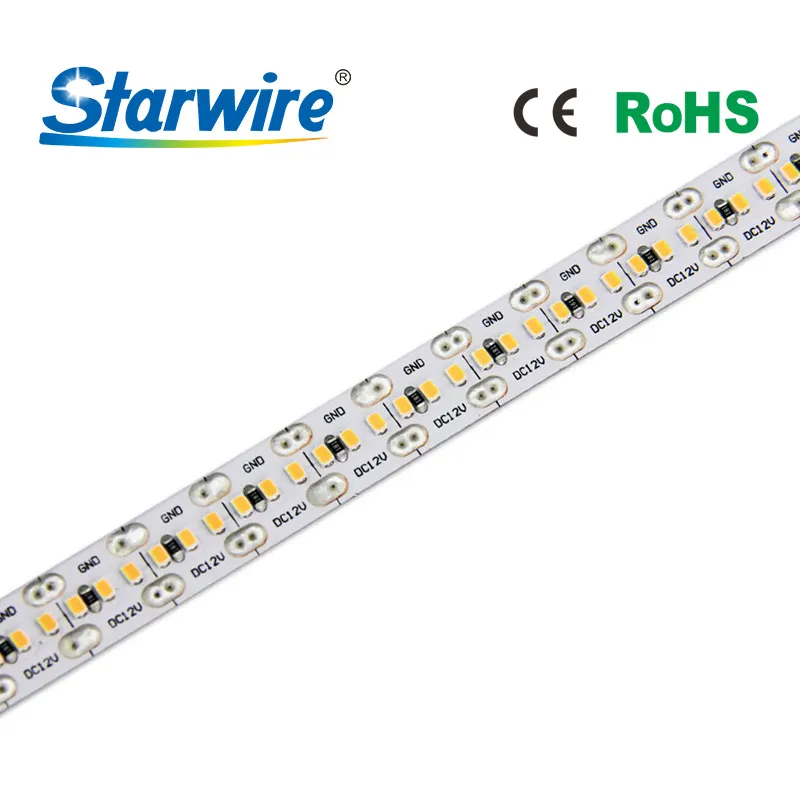

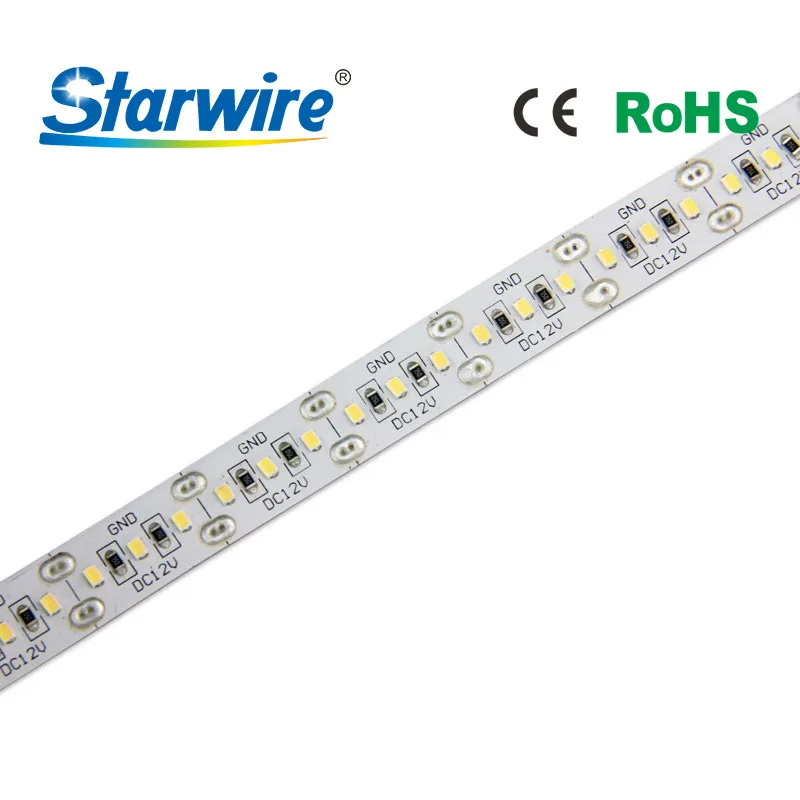

Picture:
2216-180led strip:5m/roll /SMD2216 / 180pcs/m / 10mm PCB / 14.5W/m /DC12V &DC24V/982lm/m
2216-240led strip:5m/roll /SMD2216 / 240pcs/m /10mm PCB / 16W/m / DC12V & DC24V/1123lm/m
2216-300led strip:5m/roll / SMD2216 / 300pcs/m / 10mm PCB / 20W/m /DC24V/1375lm/m
Strictly color management:
2.) keep color lighting consistence...
2216 Color choices: 2300K:(2250-2325K); 2700K: (2700-2868K); 3000K: (2830-3040K); 4000k: (3900-4258K); 5000k: (4950-5300K); 6000k: (6000-6480K)
Specification
Product Name | SMD2216-180 led | SMD2216-240led | SMD2216-300led |
Led quantity | 180led/m | 240led/m | 300led/m |
CCT | 2200k-6500k | 2200k-6500k | 2200k-6500k |
Lumen | 982 lm/m | 1123 lm/m | 1375 lm/m |
Input Voltage | DC12v/24V | DC12v/24V | DC12v/24V |
Power | 14.5w/m | 16w/m | 20w/m |
IP Grade | IP20/IP65/IP66 | IP20/IP65/IP66 | IP20 |
Certification | UL Ce Rohs | UL Ce Rohs | UL Ce Rohs |
CRI | >90 | >90 | UL Ce Rohs |
PCB Width | 10 mm | 10 mm | 10 mm |
Length | 5m/roll | 5m/roll | 5m/roll/24v 3M/roll/12v |

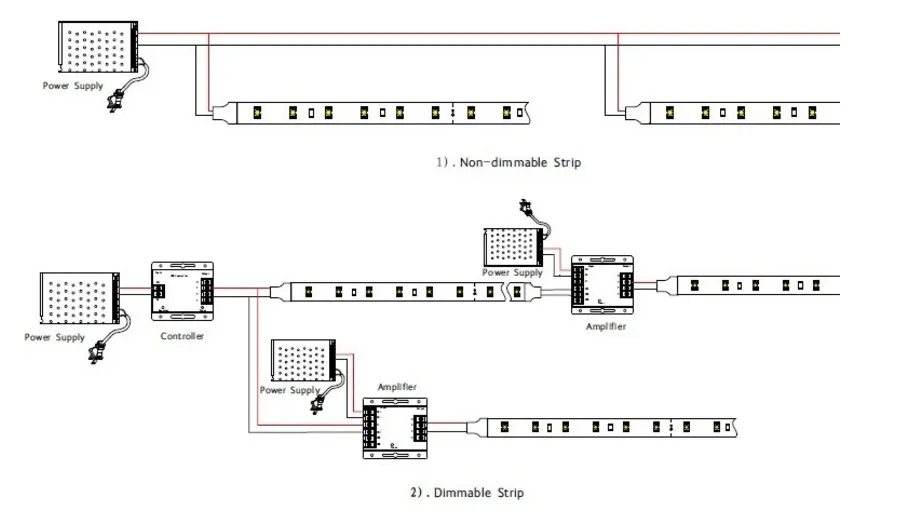

For installation:

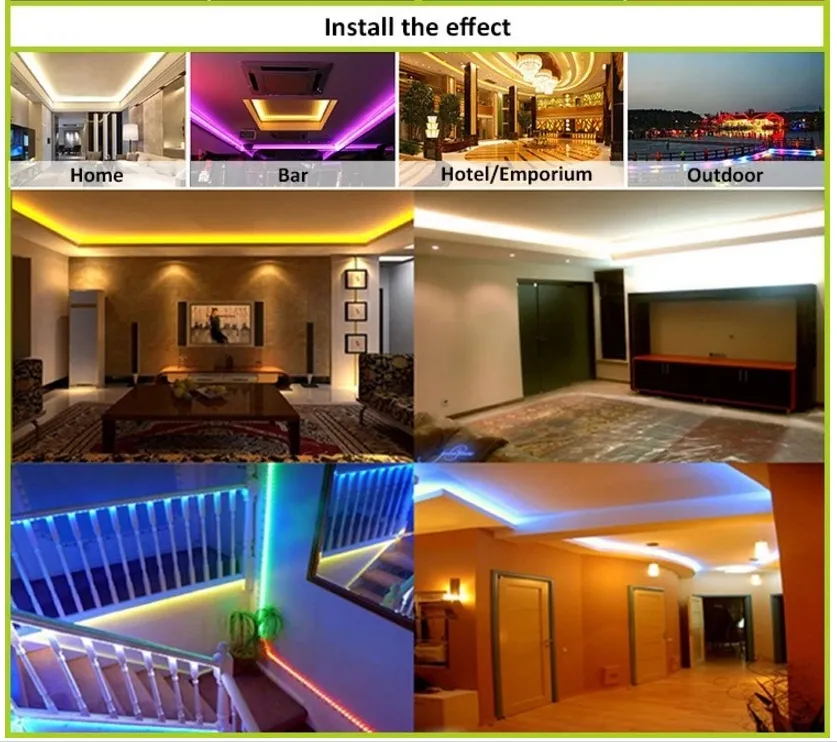

Application:
High Density Dotless 240led/m 300led/m LED Strip Light 2216
Cool white 5500K non-waterproof 24V 240led 2216 LED Strip
Starwire==Your Reliable & Valuable Partner in China |
1. Professional: 1) We have been working on LED Strip Lights for more than 5 years; 2) Various Design=OEM Strip VS Aluminum profile Available; 3) Supply led strip, led profile, led controller, connector wire, led driver, DMX, etc. |
2. Quality: 1) All the products will go through 7 checks during production, And the finished products with 48 hours Aging-test; 2) EU/Chinese Design Patent + CE/RoHS Approved + UL is pending; 3) Warranty: 2 years stadandrd period, 3 years for special request. |
3. Service 2) Reply within 6 hours; |
4. Sample Required: Available from Stock & Fast Delivery! |
Information of our company:
Shenzhen Starwire Lighting Co., Limited was set up in 2009. Now we focus on two products: LED
Strip Light & LED Downlight . We have two product department specializes in these two categories
of products. Our annual turnover is 10 million US dollars. Now we have 3600 square merer factory

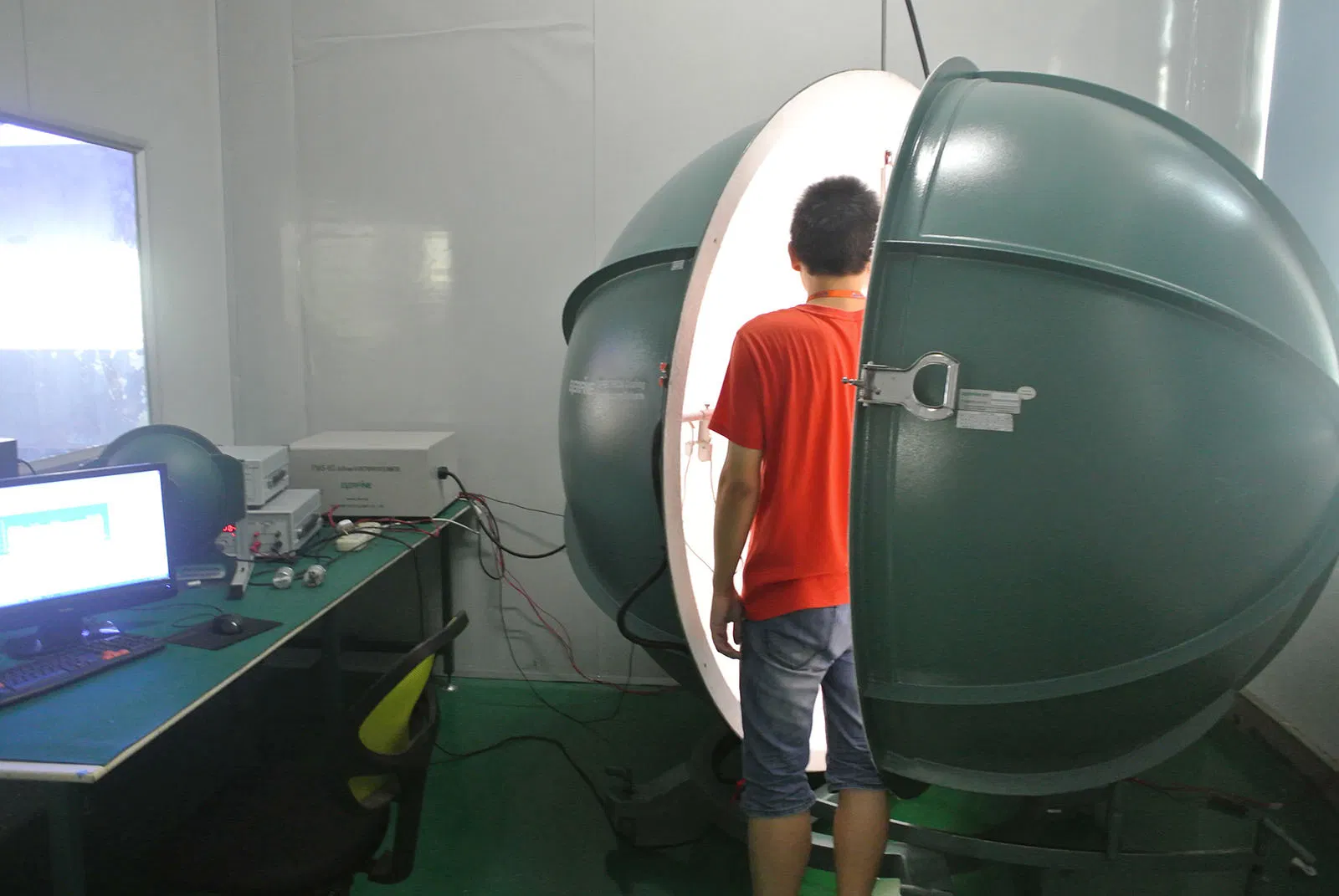

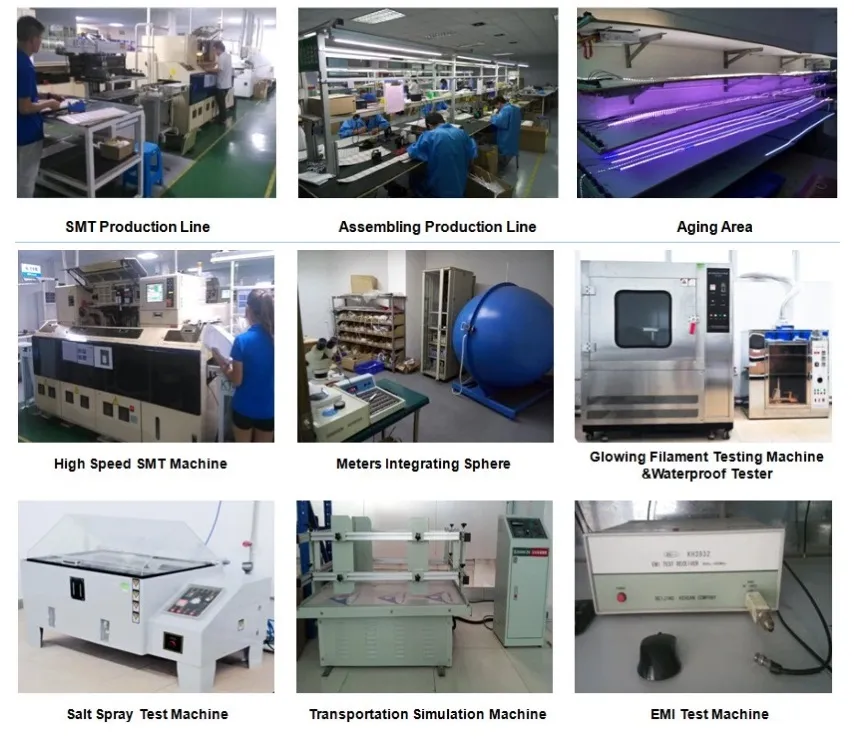

and over 140 workers. We have goniophotometer, intergrating sphere, Humidity Chamber and other
testing equipment.
STARWIRE is a company combing R&D, produce sales together, our factory obtained SGS,
BV certifactions, and out products have passed UL, CE, RoHS, TUV, SAA cetification, our products
are selling well in Europe, North America, Australia and other countries.
We love product, not aggressive, not convergence, but strive to do a small but beautiful factory.
FAQ:
Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: starwire-led.en.made-in-china.com
Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.
Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.
Q4: What is warranty time for your products? If any broken, what I will do?
2-3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.
Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.
Q6: What kinds of payment methods do you accept?
T/T bank transfer, West Union and Paypal, L/C at sight
Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
Exhibition:
2,2018 HK Lighting Fair . Booth number:5B-B05,Date:27-30TH,October.
