Multicolor High Flexibility LED Strip Light 14.4W SMD5050 5050 Strip 60LED Strip CB RoHS CE FCC
Product specificationStrip series HL-1060-5050Product Features::1. It adopts imported high-bright 5050 chip light source with stable performance and large illumination angle;2, the use of high thermal conductivity aluminum substrate, high thermal conductivity double-sided adhesive, good heat dissipa......
Send Inquiry
Product Description
Product specification
Strip series HL-1060-5050
Product Features::
1. It adopts imported high-bright 5050 chip light source with stable performance and large illumination angle;
2, the use of high thermal conductivity aluminum substrate, high thermal conductivity double-sided adhesive, good heat dissipation, easy to paste;

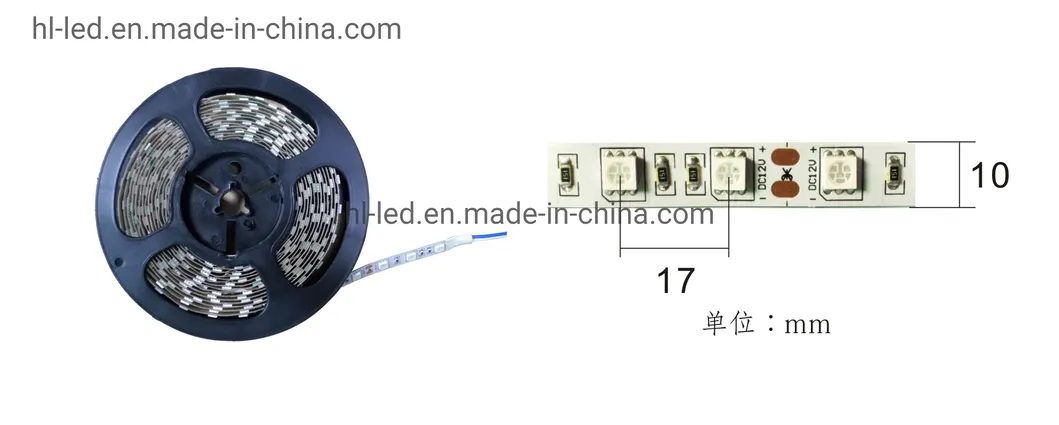

3, width 10mm, 60 lights per meter, standard length of 5m per roll, 300 lights per roll;
4, DC12V safe voltage, low power consumption, safety and energy saving, long service life of 50,000 hours.
Light source parameter
| Product type | Led quality | Luminous color | Beam angle | Luminous flux | Color temperature |
| HL-1060-5050 | 60PCS | white | ≥160° | 25Lm | 15000k |
| HL-1060-5050 | 60PCS | red | ≥160° | 25Lm | 620-630nm |
| HL-1060-5050 | 60PCS | green | ≥160° | 25Lm | 510-525nm |
| HL-1060-5050 | 60PCS | blue | ≥160° | 25Lm | 455-470nm |
| HL-1060-5050 | 60PCS | yellow | ≥160° | 25Lm | 585-595nm |
lectrical parameters and use environment
| Serial number | term | parameter |
| 1 | Input voltage | DC12V |
| 2 | Input Current | 1200mA |
| 3 | Single lamp power | 0.24W |
| 4 | rated power | 14.4W |
| 5 | Number of cascades | 5meter |
| 6 | Color/material | silver white/FPC |
| 7 | Dimensions (length * width) | 1000*10mm |
| 8 | Protection level | IP33/IP33 |
| 9 | Working temperature | -20ºC +60ºC |
| 10 | Service life | 3years /15000H |
1. Luminous words, resin words, mini words, ultra-thin light boxes, advertising signs;
2. High-end specialty stores, shopping malls, supermarkets and other indoor lighting;
3. Bar, KTV, cafe, stage and other entertainment and leisure venues;
4. Lighting, beauty salons, high-end counters, hotel outdoor signs, etc.;
5. Decoration of cars, corridors, stairs, furniture, shop windows, buildings, bridges, etc.
Packing: vacuum plastic anti-static bag and carton.
Precautions:
1. The LED light bar adopts low voltage input, and it is not allowed to directly connect to the 220V power supply without passing through the power supply, otherwise the whole module will be burnt.
2. The LED light bar has positive and negative poles. When installing, pay attention to the power port wiring must be positive and negative. If the positive and negative poles are reversed, the module will not emit light.
Trade Terms:
1.Payment: orders 100% payment advance by Paypal, Western Union, the company account ,T/T
2.big order: T/T 30% advance 70% before shipping
3. Delivery time: Samples/small orders 2-6days Mass order: 6-15days
Shipping:
1. FedEx/DHL/UPS/TNT for Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customer specified freight forwarding mode of transport
