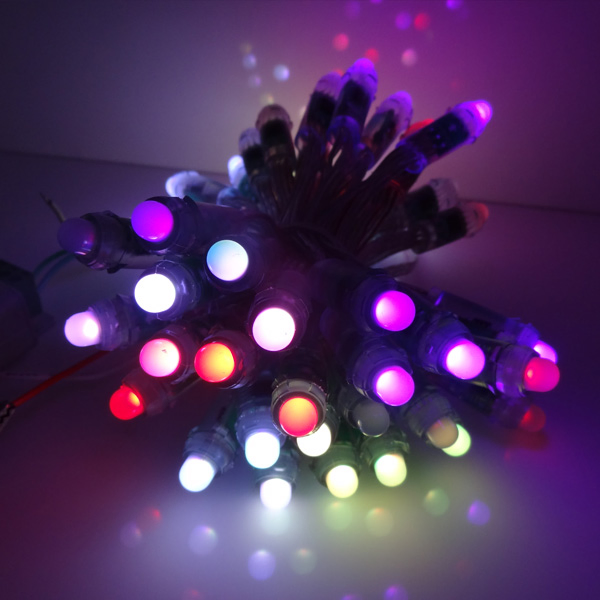

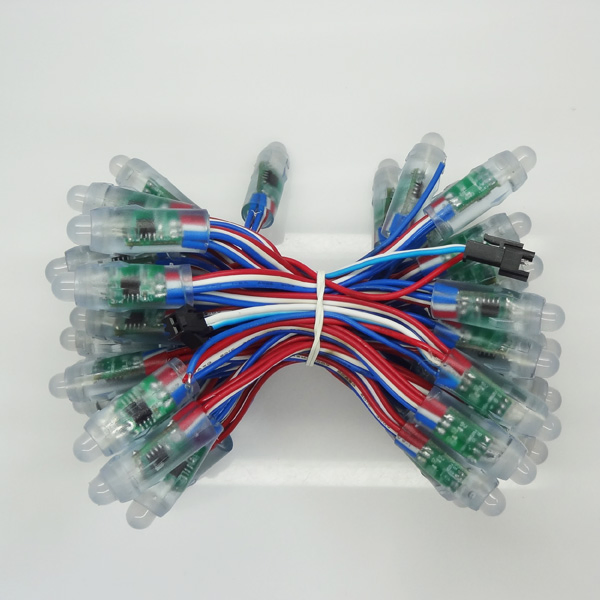

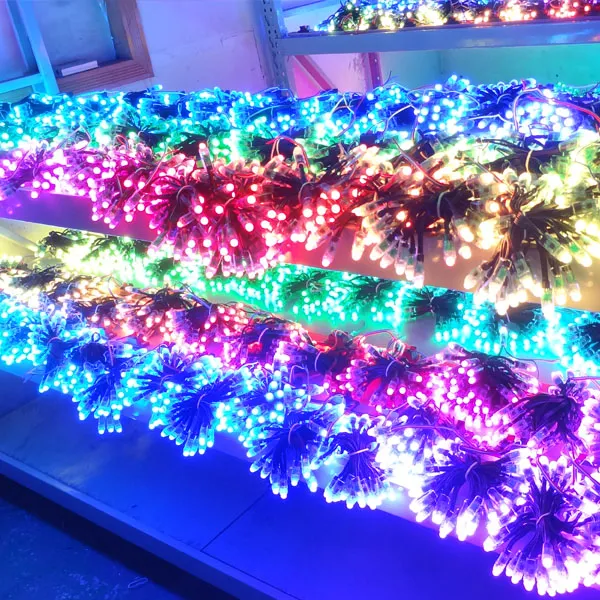

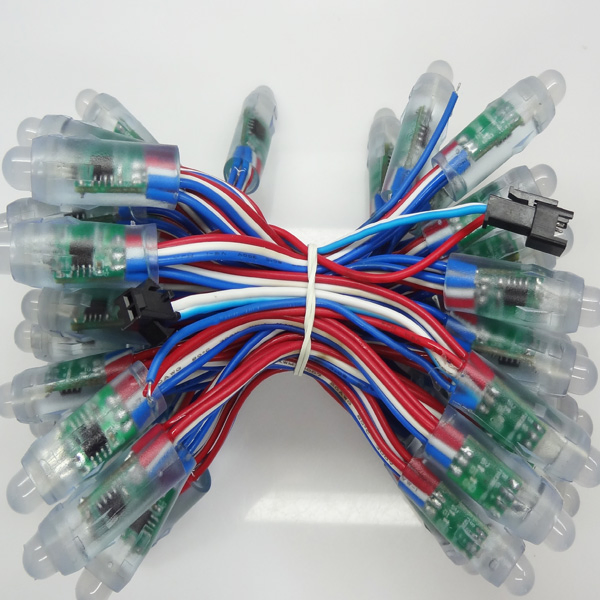

Pixel LED Strip Christmas Lighting Ws2811 DC5V 50bulb String LED FiberPhoto by close goods of ws2811 pixel led.Waterproof ws2811 digital rgb LED flexible string pixel ledled pixel It is 50pcs per string in standard,led pixel dc5v,dc12v avilable.led pixel 1903,ws2812b,6803 and other IC chips avilable......
Part Numbe | Color | LED Parameter | Wattage | Size | Power | OEM/Customize? |
3528-30LED | R/G/B/Y/W/WW | SMD3528/30LED | 2.4W/M | 8*1000MM | DC12V/DC24V | YES |
3528-60LED | R/G/B/Y/W/WW | SMD3528/60LED | 4.8W/M | 8*1000MM | DC12V/DC24V | YES |
3528-120LED | R/G/B/Y/W/WW | SMD3528/120LED | 9.6W/M | 8*1000MM | DC12V/DC24V | YES |
5050-30LED | R/G/B/Y/W/WW/RGB | SMD5050/30LED | 7.2W/M | 10*1000MM | DC12V/DC24V | YES |
5050-60LED | R/G/B/Y/W/WW/RGB | SMD5050/60LED | 14.4W/M | 10*1000MM | DC12V/DC24V | YES |
5630-60 LED | white | SMD5630/60LED | 18W/M | 8*1000MM | DC12V/DC24V | YES |
2835-60 LED | R/G/B/Y/W/WW | SMD2835/60LED | 12W/M | 8*1000MM | DC12V/DC24V | YES |
2835-120 LED | R/G/B/Y/W/WW | SMD2835/120LED | 24W/M | 8*1000MM | DC12V/DC24V | YES |
2835-240 LED | R/G/B/Y/W/WW | SMD2835/240LED | 36W/M | 12*1000MM | DC12V/DC24V | YES |
3014-60 LED | R/G/B/Y/W/WW | SMD3014/60LED | 12W/M | 10*1000MM | DC12V/DC24V | YES |
3014-120 LED | R/G/B/Y/W/WW | SMD3014/120LED | 24W/M | 10*1000MM | DC12V/DC24V | YES |
Business model | Manufacture |
Item Model | MS-WS2812B-60 |
LED Quantity | 60PCS/M,300PCS/Reel |
IC Type | WS2812B (IC Built in LED) |
Wattage | 18W/M |
Pixel/m | 60pixel/m,300pixel/reel |
PCB Width | 10mm |
Length/Reel | 5M |
Working Voltage | DC5V |
Package | Anti-Static Bag |
Light Color | Multi-Color, digital RGB,Every LED individual Control |
IP Grade | IP20:Non waterproof IP65:Soft glue waterproof IP67:Soft tube waterproof IP68:Soft tube+glue waterproof |
Glue Type | Expoy:Non-anti-UV,Stay clean for short time,smell Silicone:Anti-UV,Stay clean,soft,smell-less PU: Anti-UV,Stay clean,soft,smell-less |
PCB Color | White ,Black |
Certification | CE RoHS |
Cut size | DC5V (every LED per cut), DC12V (every 3LED per cut) |
Installation | IP20 with 3M Adhesive tape on the back of PCB IP65 with 3M Adhesive tape on the back of PCB IP67 with plastic clip and screw IP68 with plastic clip and screw |
Many other types IC for choose |
Addressable LED Strip with ,IC WS2811 WS2812,Individual Pixel Control | ||||||||
A | MS-WS2812B-30 | 30pcs SMD5050/M | 9W/M | DC5V | 30 Pixel/M | WS2812B | Dream Color RGB | IP20 IP65 IP67 IP68 |
B | MS -WS2811-30 | 30pcs SMD5050/M | 7.2W/M | DC12V | 10 Pixel/M | WS2811 | Dream Color RGB | IP20 IP65 IP67 |
C | MS-WS2811-48 | 48pcs SMD5050/M | 11.5W/M | DC12V | 16 Pixel/M | WS2811 | Dream Color RGB | IP20 IP65 IP67 |
D | MS-WS2811-60 | 60pcs SMD5050/M | 14.4W/M | DC12V | 20 Pixel/M | WS2811 | Dream Color RGB | IP20 IP65 IP67 |
E | MS-WS2812B-60 | 60pcs SMD5050/M | 18W/M | DC5V | 60 Pixel/M | WS2812B | Dream Color RGB | IP20 IP65 IP67 |
F | MS-WS2812B-144 | 144pcs SMD5050/M | 43.2W/M | DC5V | 144 Pixel/M | WS2812B | Dream Color RGB |
