SMD2835 120LEDs DC12 /24V High efficiency LED Strips
SMD2835 120LEDs/m DC24V High efficiency color changing LED Strips Product Parameter Model No.LM2835-WN120-W-24VLED Qty120leds/m 2835Rated Power(W)24W/M, 120W/5MVoltage(V)24V DCPCB Width10MMPCB materials2Oz Double-sided coated pure copperLuminous(lm/m)2000lm/mLED Chip BrandSanan(Epistar optional)LE......
Send Inquiry
Product Description

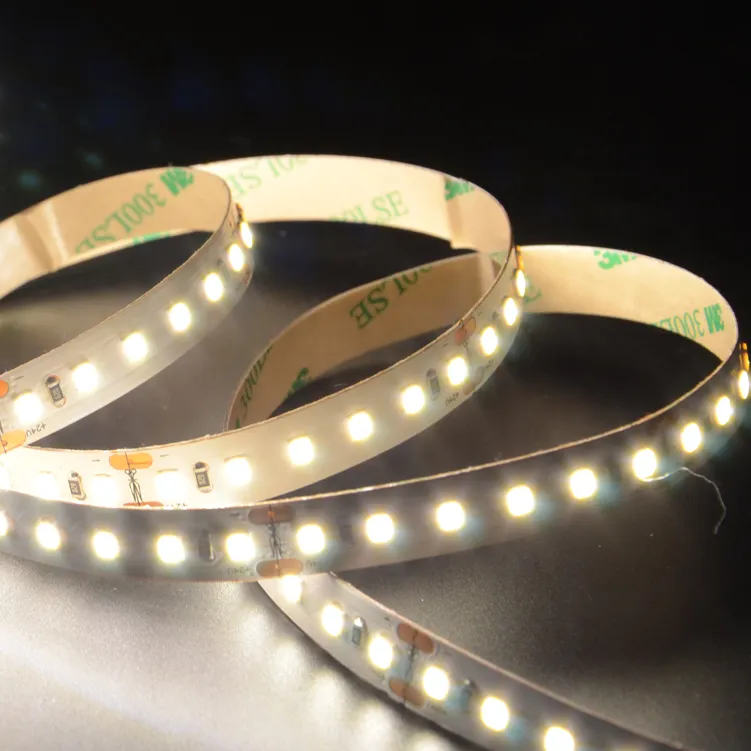

SMD2835 120LEDs/m DC24V High efficiency color changing LED Strips
Product Parameter
| Model No. | LM2835-WN120-W-24V |
| LED Qty | 120leds/m 2835 |
| Rated Power(W) | 24W/M, 120W/5M |
| Voltage(V) | 24V DC |
| PCB Width | 10MM |
| PCB materials | 2Oz Double-sided coated pure copper |
| Luminous(lm/m) | 2000lm/m |
| LED Chip Brand | Sanan(Epistar optional) |
| LED's material | Packaged by 99.99% pure gold wire |
| LED Bins | 3-Step/5-Step, same BIN for each order |
| LED Supplier | Honglitronic (Osram/Samsung optional) |
| CRI(RA>) | CRI80(CRI90 CRI95 optional) |
| Color | W/WW/CW/R/G/B/Y/O/UV/Pink |
| Color Temperature | 2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K |
| IP Rate | IP20 (IP54/IP67/IP68 optional) |
| View Angle | 120° |
| Product Size(mm) | 10*5000mm |
| Package(m/roll) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
| Working Temperature(ºC) | -20-60 |
| Cutting Unit | 6 LEDs |
| Adhesive Tape | 9495 3000LSE 3M tape |
| Dimmable | Yes |
| Certificate | UL, CE, RoHs, FCC |
| Warranty | 3 Years |

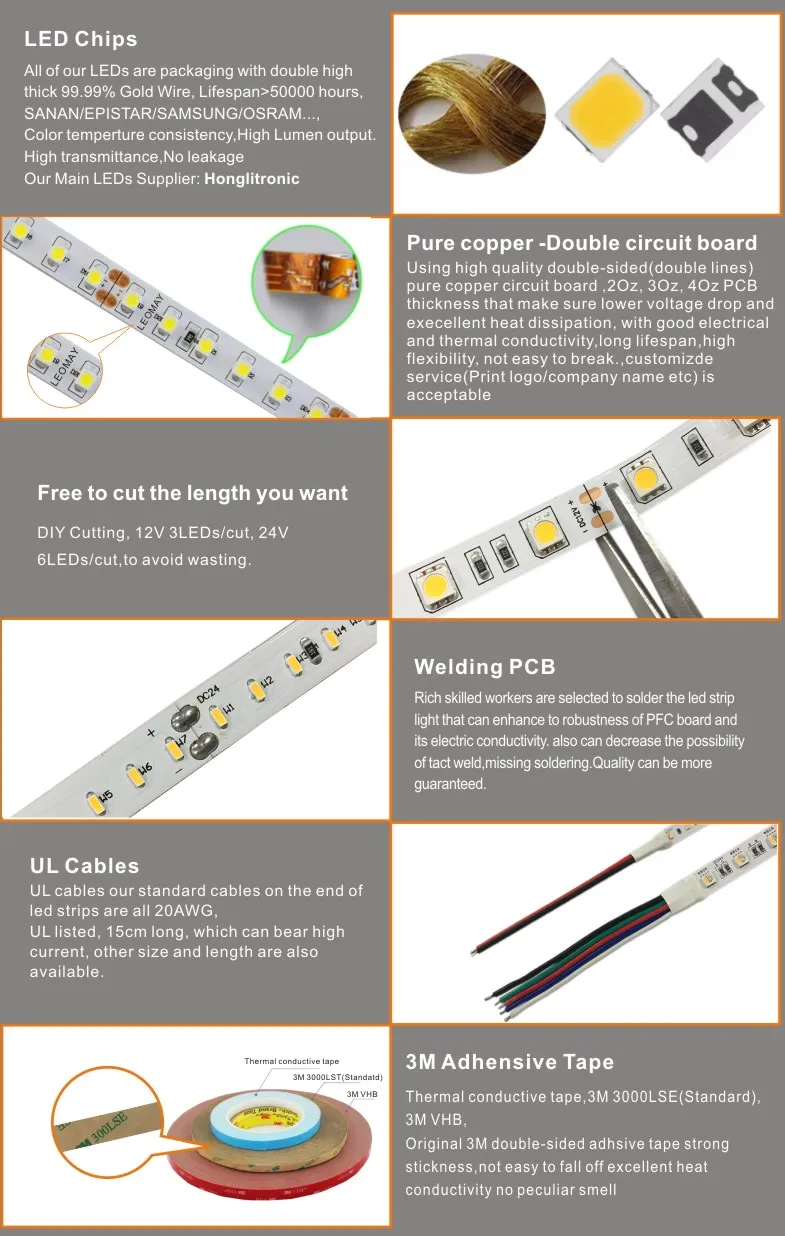

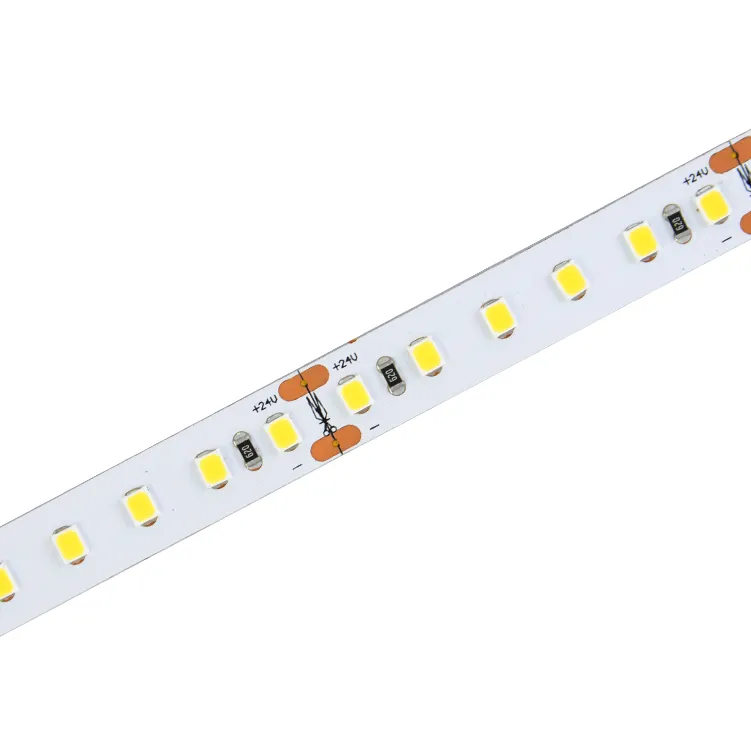

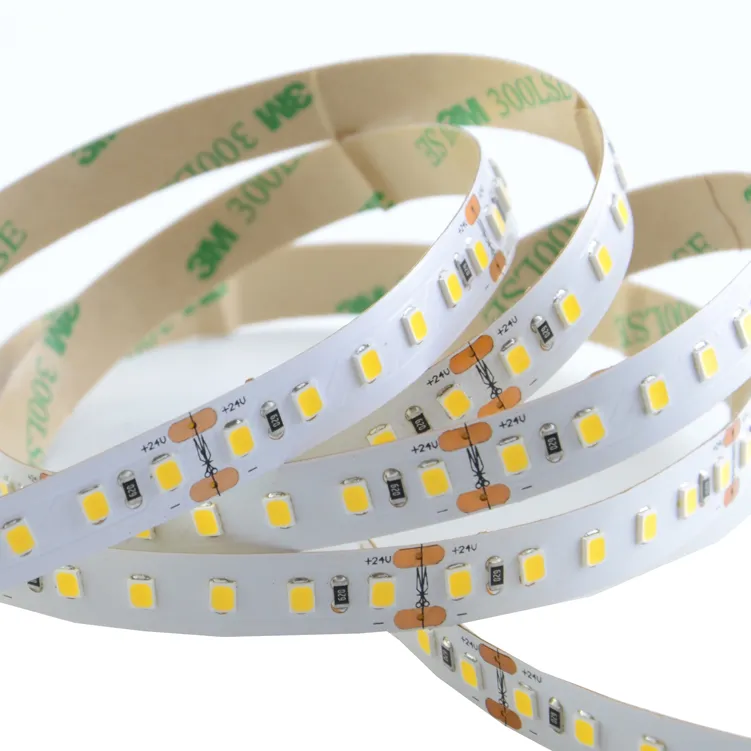

Details Images

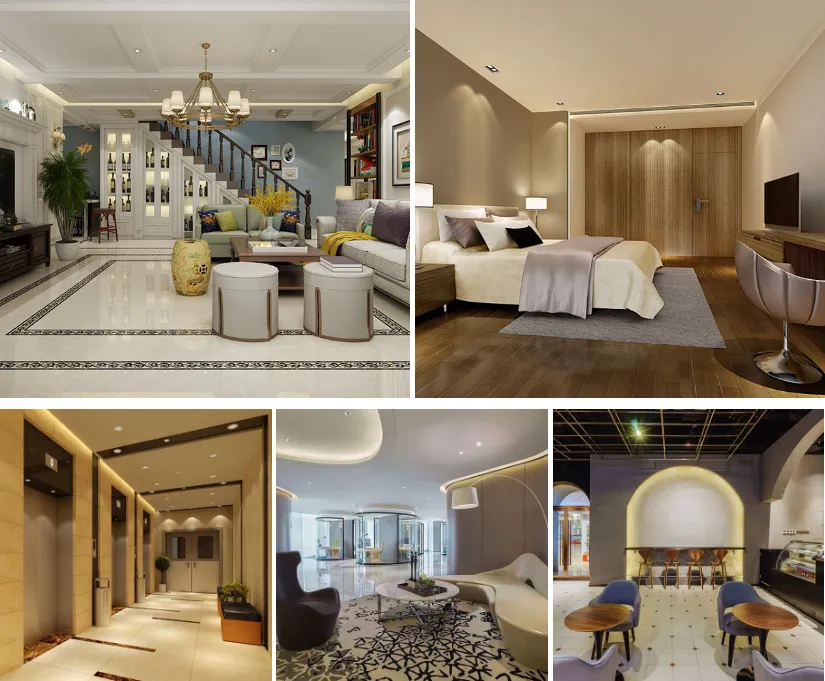

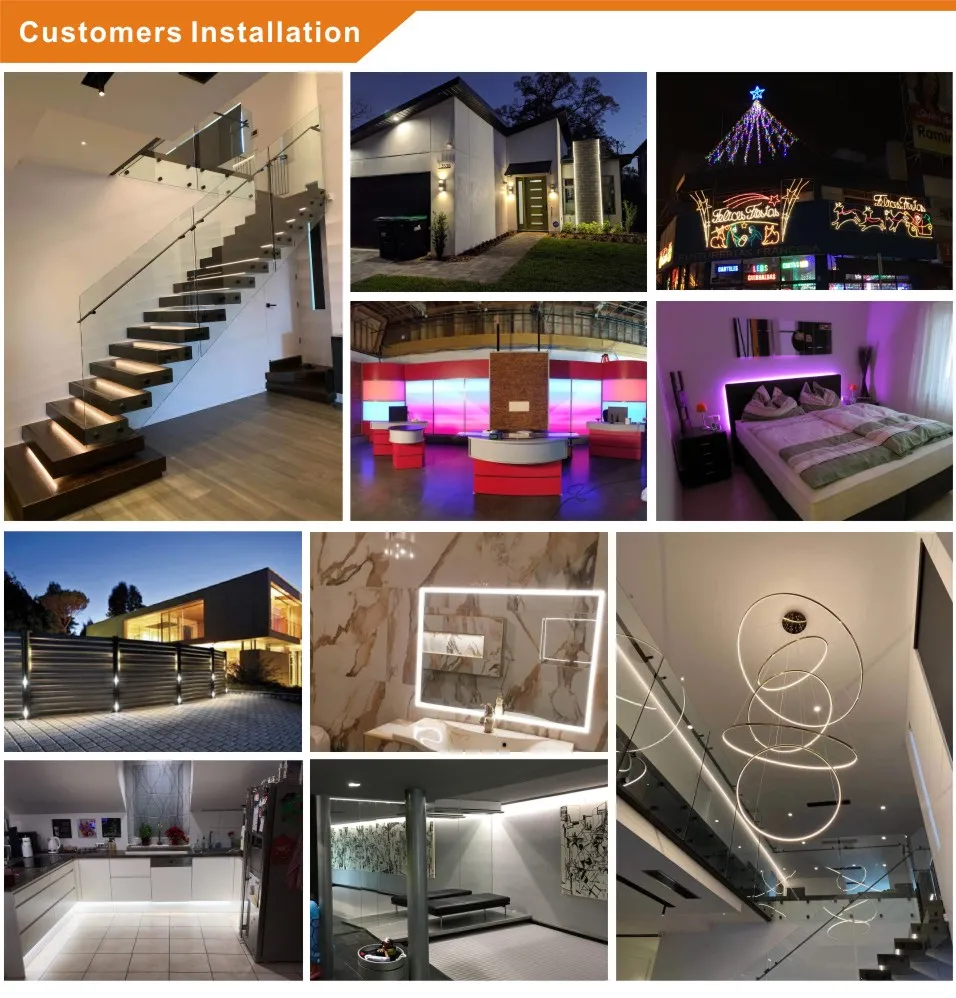

Application
This product can be used for :
1.Decorate shopping mall, super market
2.Club, store, hotel, restaurant, school, library, art gallery, museum
3.Office building
4.Window display lighting, mirror decoration, large scale backlight
5.Indoor and outdoor lighting and for festival decoration
Our Services
1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.
Packing & Delivery
Packing
- LED Strip Normal Length: 5meters/roll, in a anti-static bag.
- Our Box Size for 80rolls 10MM width Led strip and 12MM width
- Size:46CM*35CM*25CM
- 50Rolls led strip in 1 Box
- weight: 10.5±0.5KG/BOX
Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.

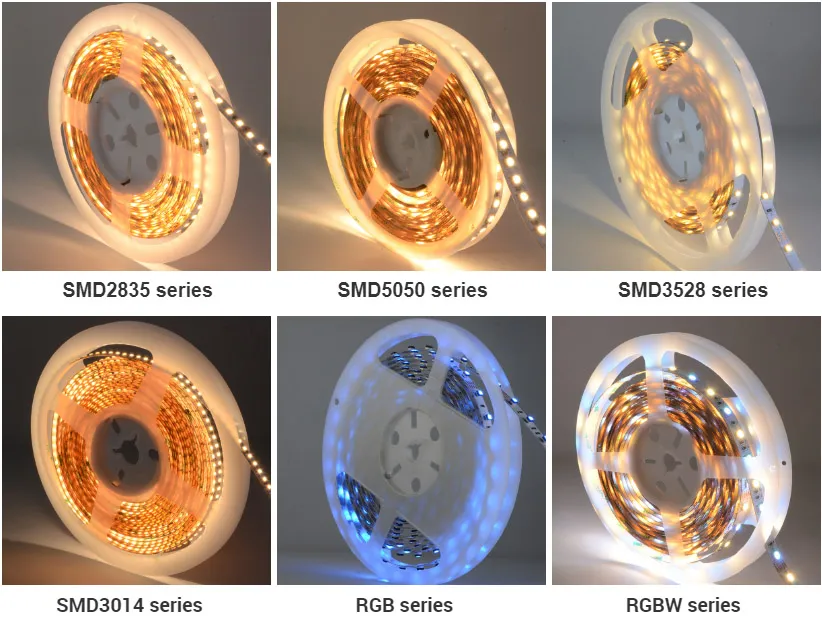

Recommend Products
Company Profile
Our Advantages

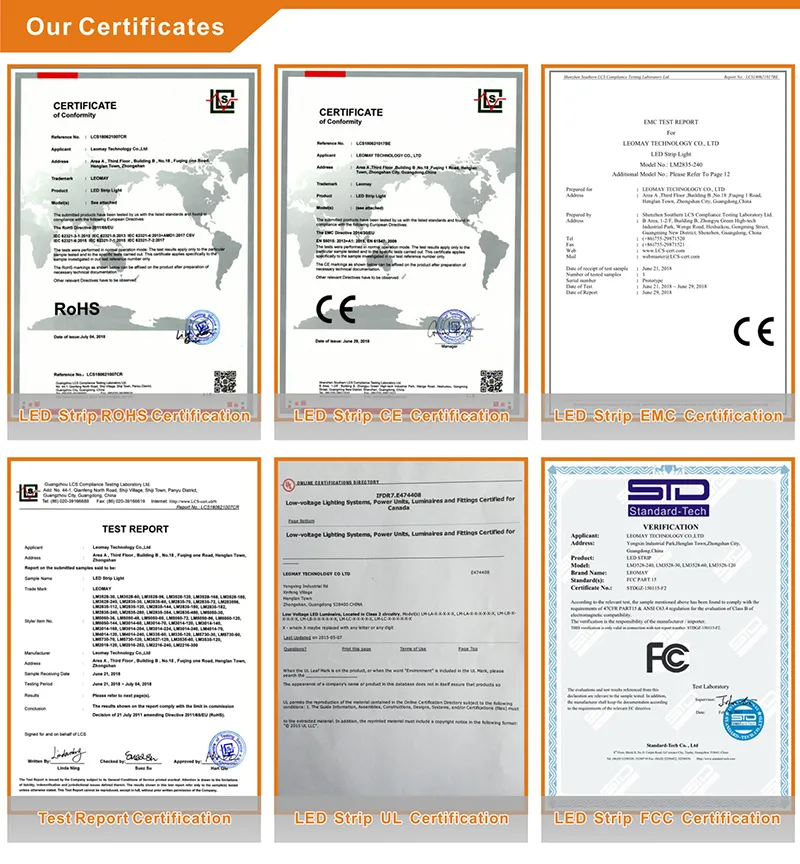

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. Super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
