Ws2811 Tiras LED RGB 5050
Product Description ws2811 tiras led rgb 5050 Model numberSL-ws2811 LED TYPEEEpister SMD 5050 RGB Color temperauter Addressable PCB colorwhite or black PCB PCB Width10mmView angle 120 degree LED QTY 60LEDS/M POWER 14.4 W/M Voltage DC12V Installation wiht 3M adhesive back ,easy for installation ......
Send Inquiry
Product Description
Product Description

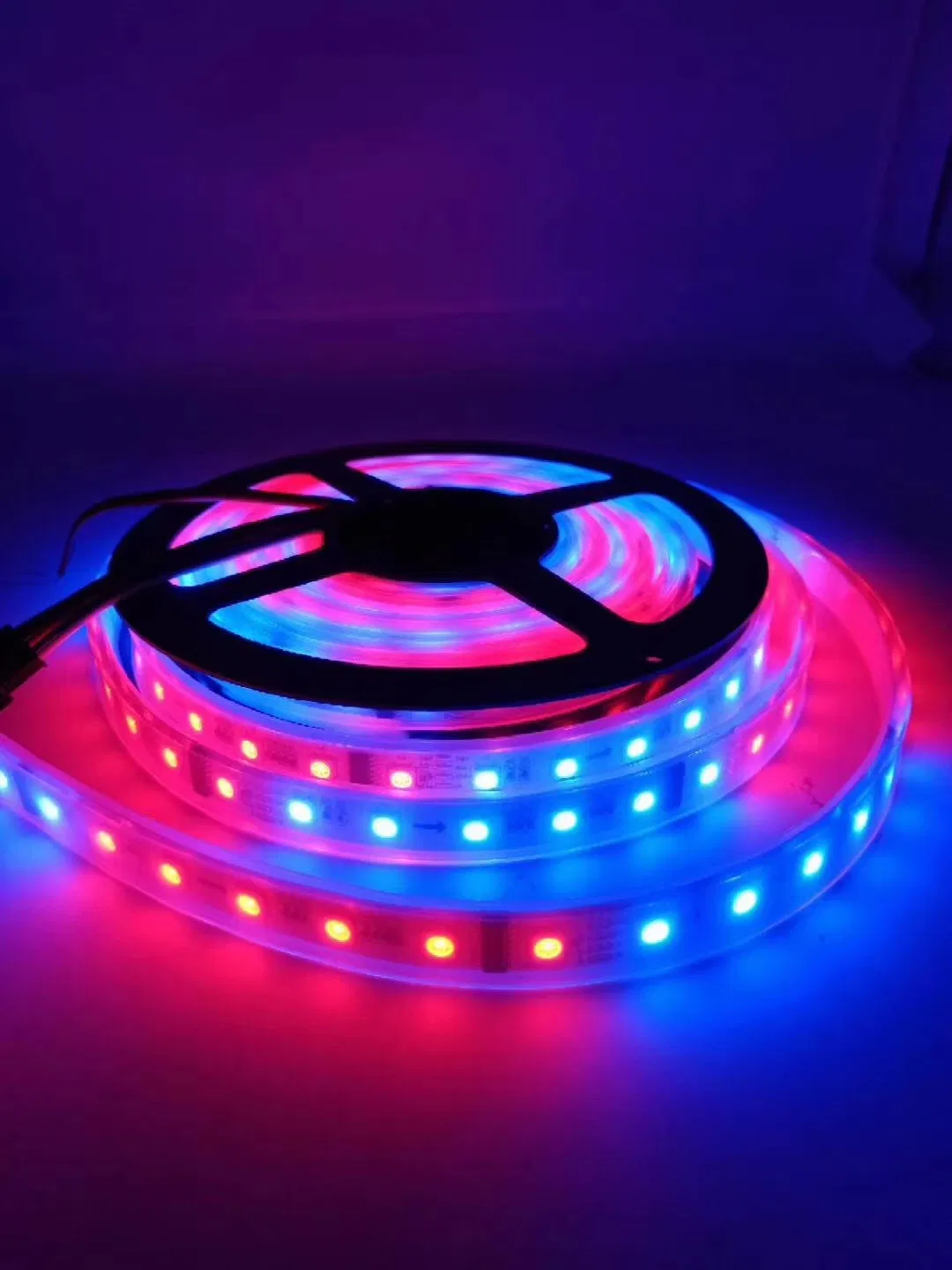

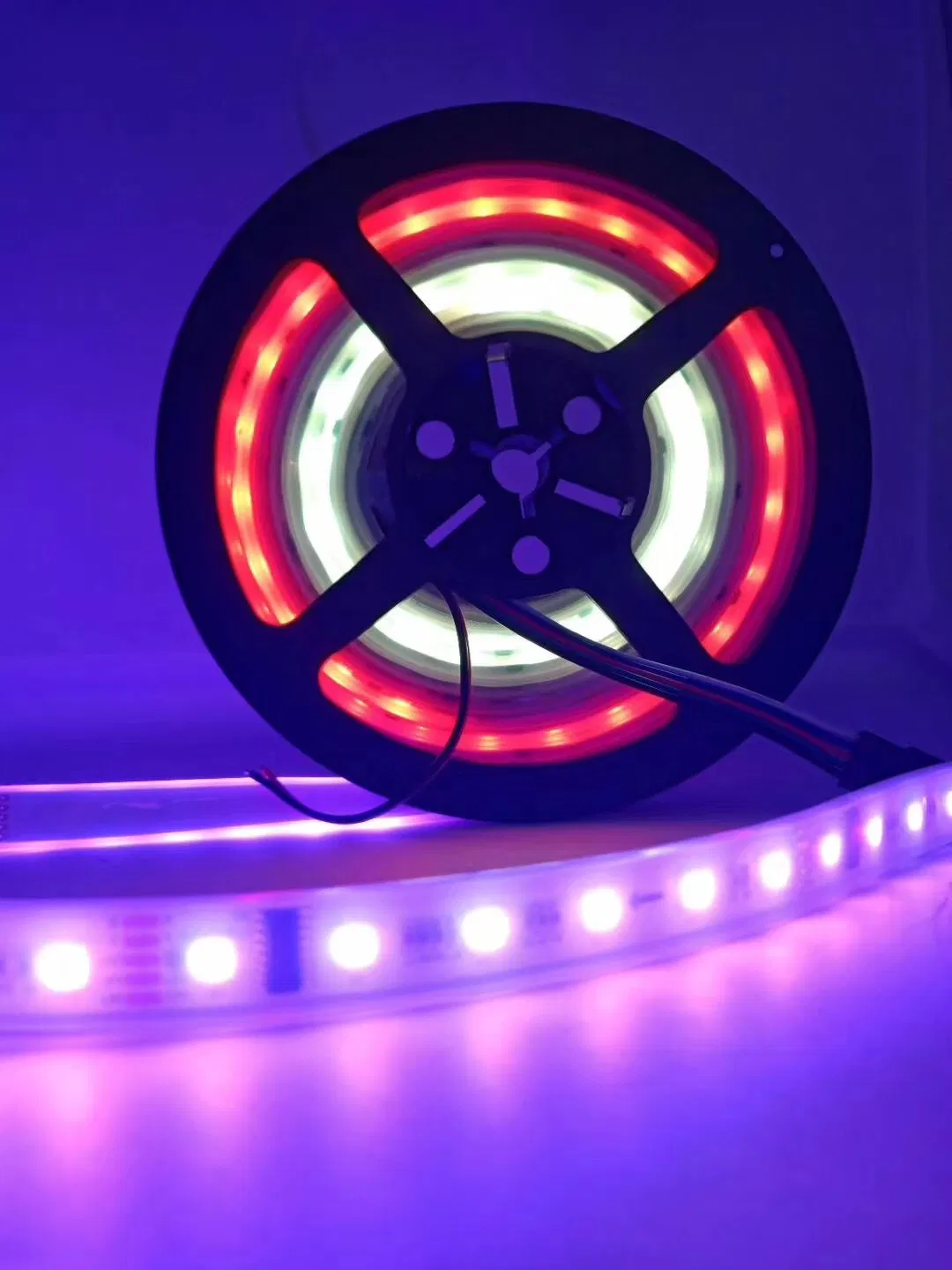

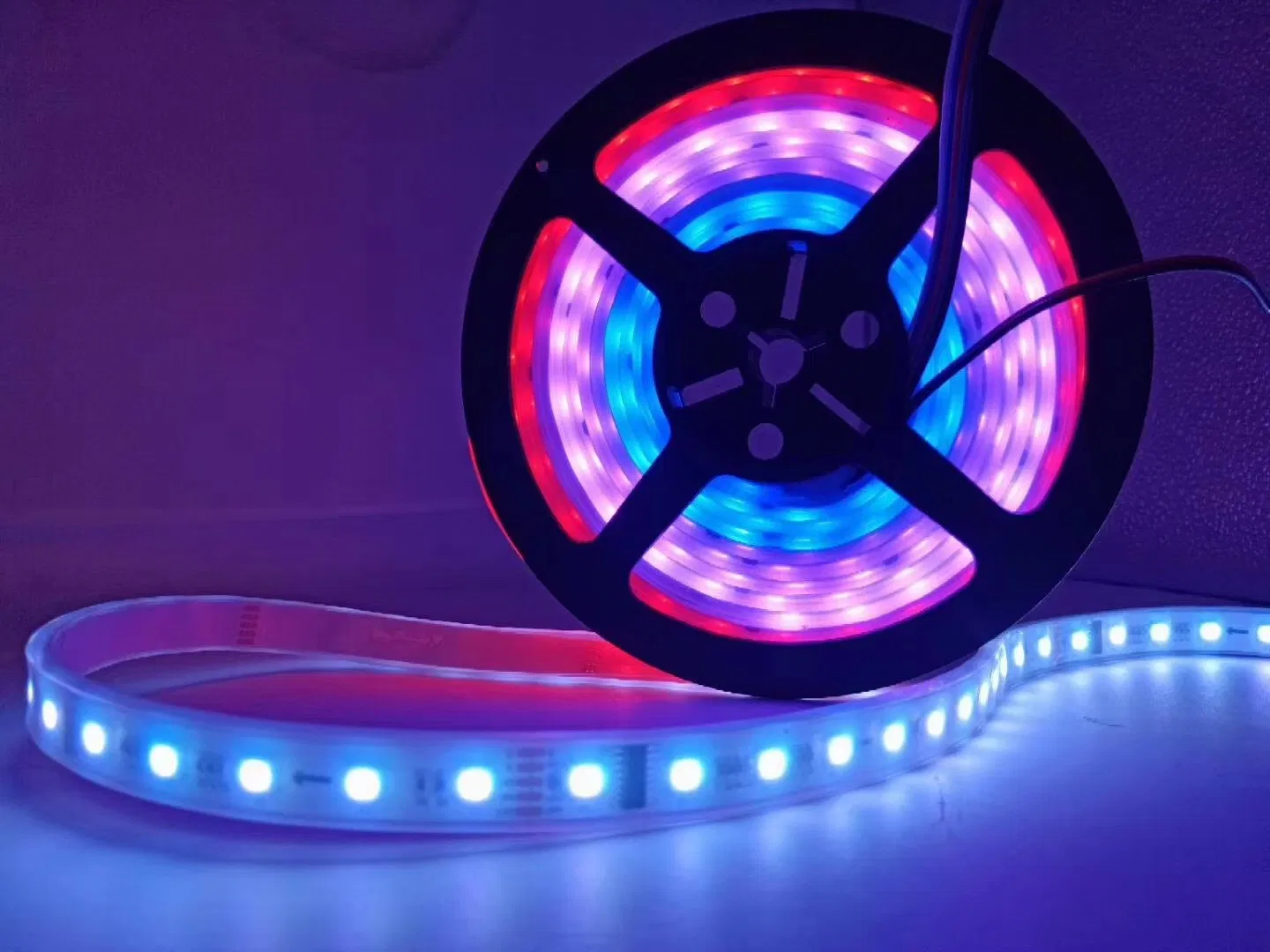

ws2811 tiras led rgb 5050
Model number | SL-ws2811 | ||
LED TYPEE | Epister SMD 5050 RGB | ||
Color temperauter | Addressable | ||
PCB color | white or black PCB | ||
PCB Width | 10mm | ||
View angle | 120 degree | ||
LED QTY | 60LEDS/M | ||
POWER | 14.4 W/M | ||
Voltage | DC12V | ||
Installation | wiht 3M adhesive back ,easy for installation | ||
IP rate | IP20(non -waterproof /IP65(Silicon tube waterproof ) | ||
Package | 5M/reel .with anti-static bag ,or customized | ||
Application | indoor /outdoor decorative lighting ,ceiling lighting ,sign lighting etc. | ||
Attention:
ws2811 ic programmable rgb led pixel tape60leds led strip 12v
1)Addressable full color led strips---WS2811 IC/UCS1903 IC
2)60pcs led per one meter
3) individually control ----------1 ic& 3led chip
4)Standard Reel Length: 5meter/roll, also can be customized.
5) Cutted: 3 integrated RGB LEDs per segment, can be cutted per 3LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.
6)Power supply: You must use a 12 DC power supply to power this strip, do not use higher than 12V or you can destroy the entire strip
7)3PIN JST SM connector(non-waterproof)soldered in each end of strip,extra 2single wire for powering in input side
8)Customised length available
ws2811 ic programmable rgb led pixel tape60leds led strip 12v
Connection:
SPI signal :LED strip+ LED power supply +led controller
DMX control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply:
T-1000S/8000 +Meanwell power
ws2811 ic programmable rgb led pixel tape60leds led strip 12v
1)Addressable full color led strips---WS2811 IC/UCS1903 IC
2)60pcs led per one meter
3) individually control ----------1 ic& 3led chip
4)Standard Reel Length: 5meter/roll, also can be customized.
5) Cutted: 3 integrated RGB LEDs per segment, can be cutted per 3LED.
you can cut this stuff pretty easily with wire cutters, there are cut-lines
every 0.65''/3.33cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.
6)Power supply: You must use a 12 DC power supply to power this strip, do not use higher than 12V or you can destroy the entire strip
7)3PIN JST SM connector(non-waterproof)soldered in each end of strip,extra 2single wire for powering in input side
8)Customised length available
ws2811 ic programmable rgb led pixel tape60leds led strip 12v
Connection:
SPI signal :LED strip+ LED power supply +led controller
DMX control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino.........(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series .... (waterproof /non-waterproof )
Controller and Power supply:
T-1000S/8000 +Meanwell power
