What standards govern the use of indicator pilot lamps in electrical installations
2026-03-23

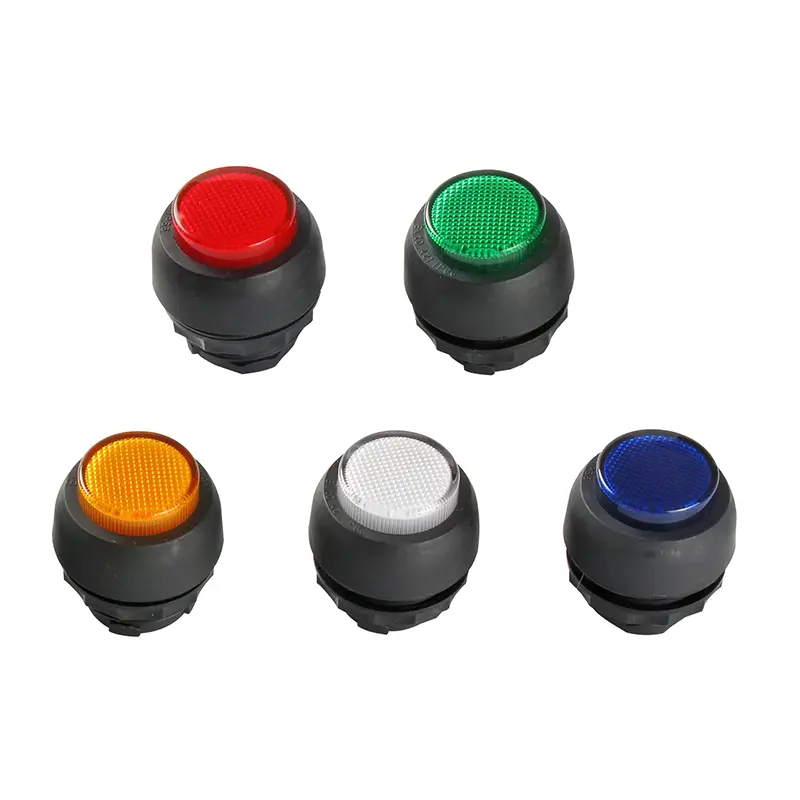

When designing, installing, or maintaining electrical control systems, the seemingly simple Indicator Pilot Lamp plays a critical role in safety, operational feedback, and compliance. Without proper standardization, these visual signaling devices can become a liability rather than an asset. Globally, manufacturers like Yuxuan adhere to strict regulatory frameworks to ensure that every Indicator Pilot Lamp delivers consistent performance under defined electrical and environmental conditions. Understanding these standards is essential for engineers, panel builders, and procurement specialists aiming to balance reliability with regulatory compliance.
The Core Standards Governing Indicator Pilot Lamps
Several international and regional standards define the requirements for Indicator Pilot Lamp construction, performance, testing, and installation. These standards ensure that lamps used in control panels, industrial machinery, and building automation systems operate safely and communicate status effectively.
| Standard | Scope | Key Requirements for Indicator Pilot Lamps |
|---|---|---|
| IEC 60073 | Basic and safety principles for visual, auditory, and tactile signals | Defines the meaning of colors (red = danger/stop, yellow = warning, green = safe/start) and the need for clear status indication. |
| IEC 60947-5-1 | Low-voltage switchgear and controlgear – Control circuit devices | Covers mechanical durability, electrical ratings, ingress protection (IP codes), and isolation characteristics for pilot lamps. |
| UL 508 | Industrial Control Equipment (North America) | Mandates dielectric voltage withstand, temperature rise limits, and short-circuit current ratings for pilot lights used in industrial panels. |
| CSA C22.2 No. 14 | Industrial Control Equipment (Canada) | Aligns with UL 508 but includes specific requirements for environmental testing and enclosure ratings. |
| EN 60439 / IEC 61439 | Low-voltage switchgear and controlgear assemblies | Governs the integration of Indicator Pilot Lamp devices into complete panel assemblies, focusing on temperature management and clear labeling. |
Why Compliance with Standards Matters
Using non-compliant components introduces risks beyond simple malfunction. A Indicator Pilot Lamp that fails to meet IEC 60947-5-1 may lack adequate isolation, potentially creating a shock hazard. Similarly, ignoring color-code standards from IEC 60073 can lead to operator confusion—such as mistaking a red lamp for normal operation—which in turn increases the likelihood of industrial accidents.
For manufacturers like Yuxuan, adherence to these standards is embedded in the design phase. From high-brightness LED modules that satisfy UL’s endurance tests to housings rated up to IP67 for harsh environments, the focus is on delivering Indicator Pilot Lamp solutions that meet both prescriptive requirements and real-world application needs.
Indicator Pilot Lamp FAQ – Common Questions Answered
What color should an indicator pilot lamp display for an emergency stop function?
According to IEC 60073 and NFPA 79, an emergency stop function must be indicated by a red Indicator Pilot Lamp. Red universally signifies danger, emergency, or a stop condition that requires immediate attention. The lamp should be illuminated when the emergency stop device is activated, providing clear visual confirmation to operators that the machine is in a safety-locked state. Using any other color for this purpose violates international safety standards and can lead to non-compliance during safety inspections.
What IP rating is recommended for indicator pilot lamps installed in washdown environments?
For washdown environments—common in food processing, pharmaceutical, or marine applications—an IP66 or IP67 rating is strongly recommended. These ingress protection ratings ensure that the Indicator Pilot Lamp can withstand high-pressure water jets (IP66) or temporary immersion (IP67) without internal moisture ingress. Brands like Yuxuan offer panel-mount pilot lamps with silicone seals and corrosion-resistant bezels specifically designed to meet these stringent environmental requirements while maintaining visibility under wet conditions.
How do I verify if an indicator pilot lamp is UL recognized for use in North America?
To verify UL recognition, look for the UR or cURus marking on the device label or datasheet. A UL-recognized Indicator Pilot Lamp has undergone testing for electrical spacing, flammability, and thermal endurance under UL 508. You can also search the UL Product iQ database using the manufacturer’s file number. For industrial control panels intended for the U.S. or Canadian markets, every component—including pilot lamps—must be listed or recognized to meet National Electrical Code (NEC) and CSA requirements. Yuxuan provides clear documentation and traceable UL markings on all compliant models to simplify panel certification.
Integrating Standards into Application Design
Beyond selecting a compliant component, proper application involves matching the standard to the operating environment. For example, a Indicator Pilot Lamp used outdoors in extreme temperatures should be evaluated against IEC 60068-2 for environmental testing. In high-vibration settings, such as mining equipment or heavy machinery, models that meet vibration test criteria per IEC 60068-2-6 are essential to prevent contact failure or lens detachment.
Leading suppliers like Yuxuan streamline this process by offering Indicator Pilot Lamp series that are pre-certified across multiple standards, reducing the engineering effort required for global market access.
Conclusion
Navigating the regulatory landscape for visual indicators is not merely about compliance—it is a fundamental aspect of operator safety, system reliability, and project efficiency. By adhering to internationally recognized standards such as IEC 60947-5-1, UL 508, and IEC 60073, engineers ensure that each Indicator Pilot Lamp delivers unambiguous status communication in any industrial environment.
For panel builders and facility managers seeking certified, high-durability signaling devices, Yuxuan provides a comprehensive portfolio of Indicator Pilot Lamp solutions designed to meet rigorous global standards.
Contact us today to discuss your application requirements or request certification documentation for our complete range of indicator pilot lamps.
